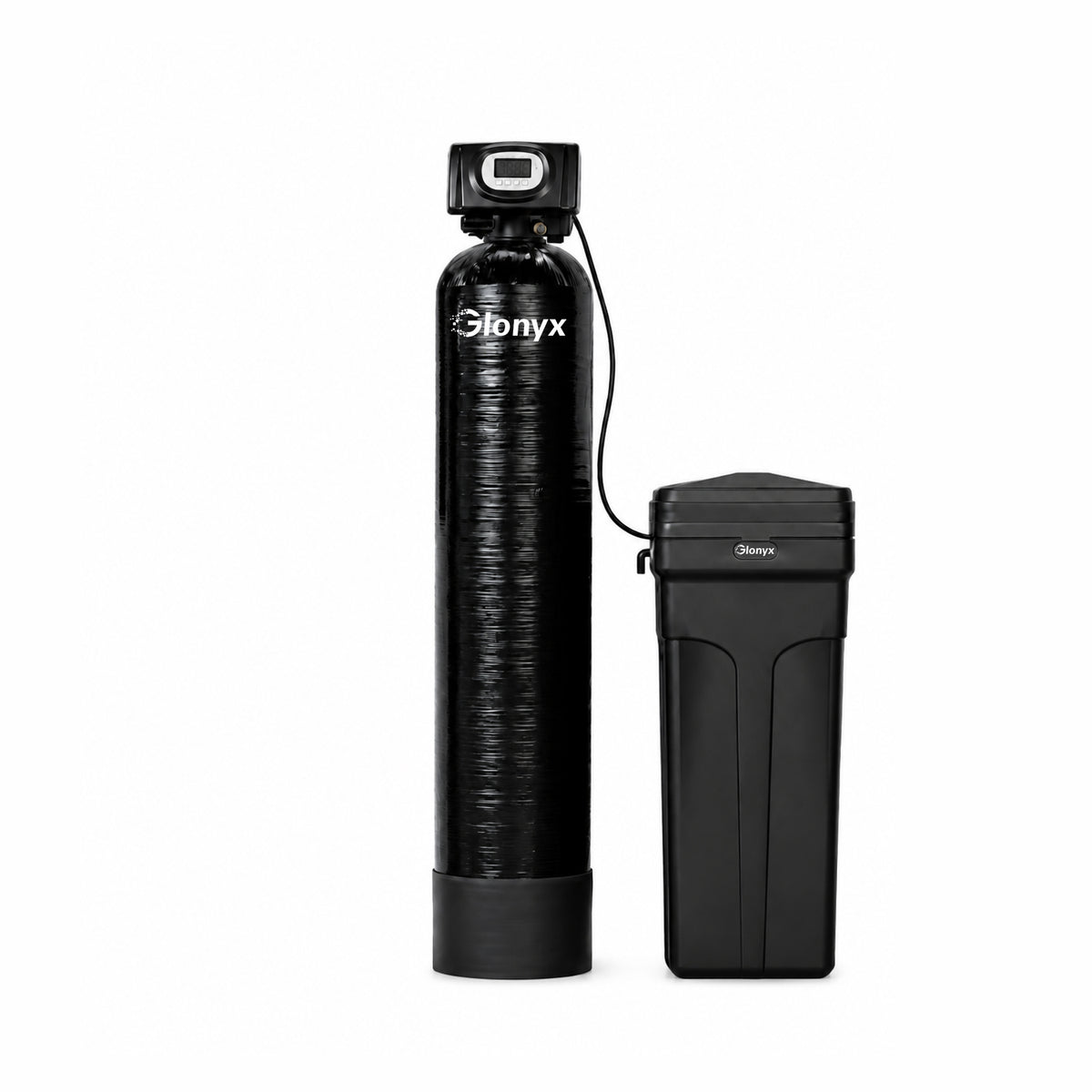

Glonyx GX-WS whole house water softener with resin tank and brine tank on white background
No reviews yet

Glonyx Whole-House Water Softener

Model Number: GX-WS

Less Hard-Water Buildup. More Enjoyable Everyday Water. Chalky deposits on faucets and shower glass can be a sign of hard water. GX-WS reduces calcium and magnesium hardness through ion exchange, helping reduce new hardness-scale buildup around your home.

Each system combines a resin tank, brine tank and programmable demand-regeneration control valve. Choose a capacity after checking water hardness, household use and peak flow.

In stock · Whole-home sizing support
One-time purchase Choose Your GX-WS Capacity
$825.00
  • 12 GPM rated service flow
  • 1.5 cu ft resin · 10 × 54 in tank
  • 1-inch MNPT · demand regeneration
  • Resin tank + brine tank + programmable control · Complete system
  • Before installation: allow space for the resin and brine tanks, salt access, a drain, and power. Ask a qualified installer to confirm the layout.
Capacity Guidance Plumber-Ready Planning Demand Regeneration

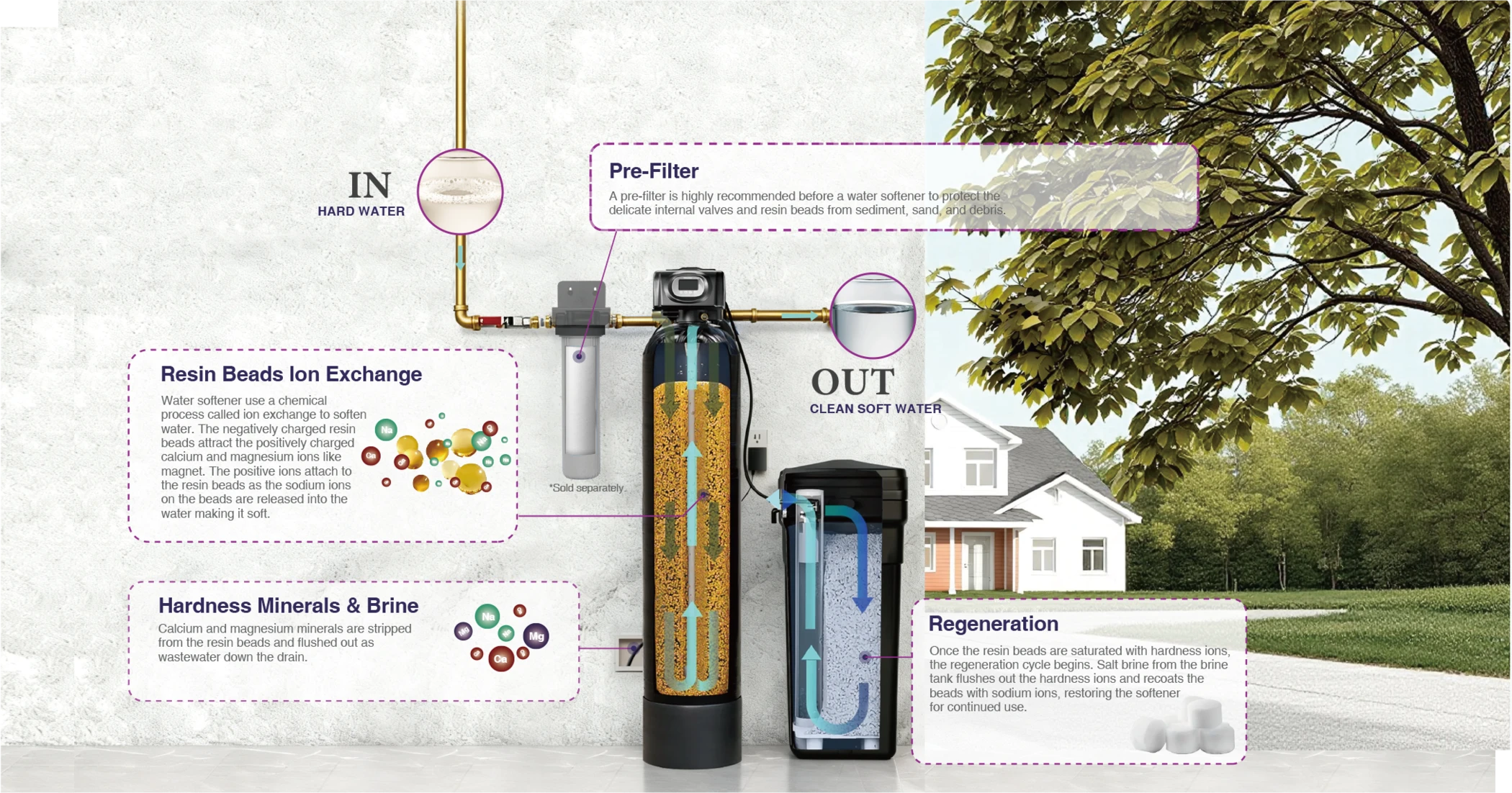

How It Works: Ion-Exchange Softening

GX-WS ion-exchange water softening process

The Benefits of Whole-Home Softened Water

GX-WS is designed for homes where calcium and magnesium hardness are causing recurring mineral scale and cleaning problems.

GX-WS less hardness scale around the home

Less hardness scale around the home

  • Helps reduce chalky deposits on faucets and shower glass.
  • Can reduce mineral spotting on dishes and fixtures.
  • Helps protect water-using appliances from hardness scale.
GX-WS demand regeneration controller

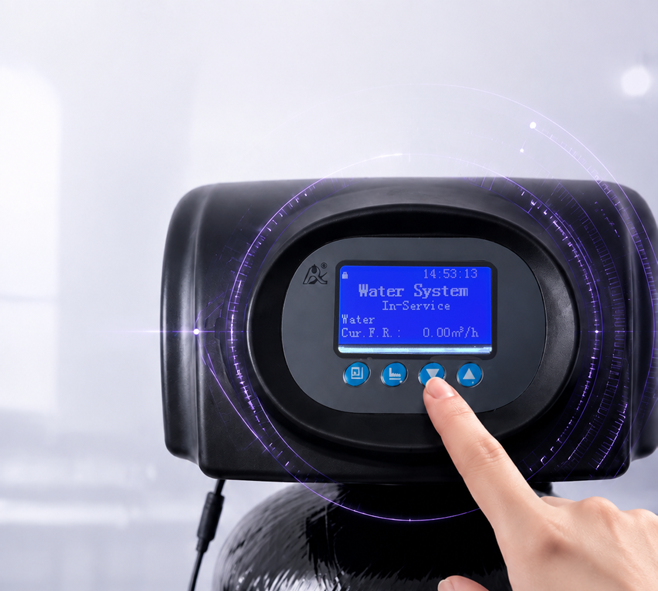

Demand regeneration for everyday use

  • Metered operation responds to programmed water use.
  • LCD display shows the current operating mode.
  • Power-off memory and alerts support easier ownership.
GX-WS planned whole-home installation

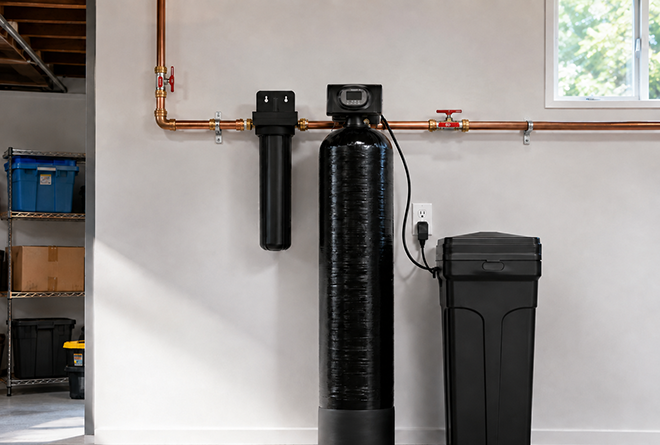

Built for a planned whole-home installation

  • 1-inch MNPT connection for the main water line.
  • Typical locations include a basement, utility room or protected garage.
  • Professional plumbing review is recommended before ordering.

Equipment Specifications

SpecificationGX-WS-32KGX-WS-48KGX-WS-64K
Grain Capacity32,000 Grains48,000 Grains64,000 Grains
Resin Tank Size9 × 48 in10 × 54 in12 × 52 in
Cross-Linked Resin Volume1.0 cu ft / 28 L1.5 cu ft / 42 L2.0 cu ft / 56 L
Brine Tank15 × 35 in15 × 35 in15 × 35 in
Service Flow Rate9 GPM12 GPM13 GPM
Pressure Drop at Service Flow15 psi / 1 bar15 psi / 1 bar15 psi / 1 bar
Frequency of RegenerationDemandDemandDemand
Plumbing Connection1 in MNPT1 in MNPT1 in MNPT
Backwashing FeatureMeteredMeteredMetered
Water Pressure20–100 psi20–100 psi20–100 psi
Water Temperature40–100°F / 4–38°C40–100°F / 4–38°C40–100°F / 4–38°C
Rated Power18W18W18W
Electrical Input110–240VAC, 50/60Hz110–240VAC, 50/60Hz110–240VAC, 50/60Hz
Glonyx GX-WS whole house water softener with resin tank and brine tank on white background

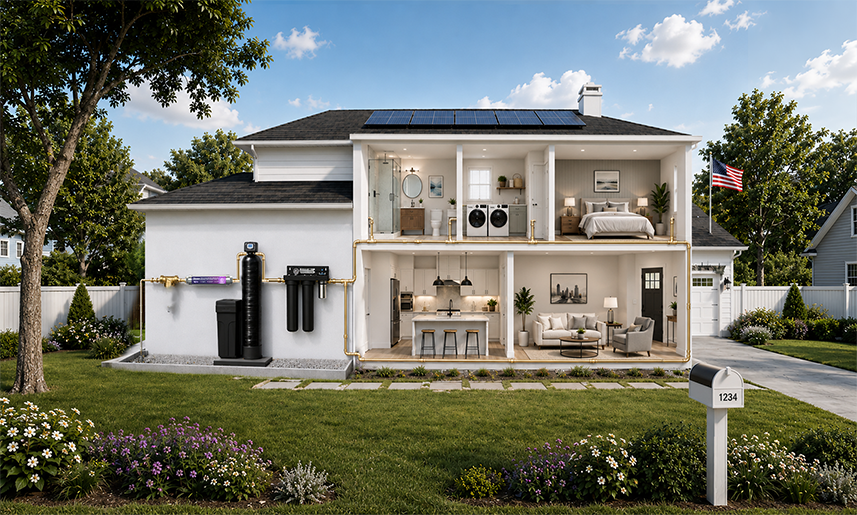

GX-WS whole-home installation recommendation

GX-WS Installation Recommendation

A whole-home softener needs a main-water tie-in, bypass valve, drain line, electrical outlet, brine-tank access and room for salt refilling and service.

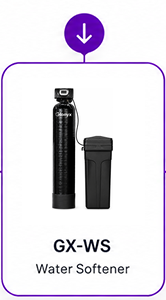

Main water line GX-SP-02 Pre-Filter GX-WD-001 Scale Inhibitor GX-WS Water Softener GX-WP-V20T Filtration / VPS Home water use
GX-WS SERIES FAQ

FAQ

1Does GX-WS actually reduce water hardness?

Yes. Ion-exchange resin removes calcium and magnesium from the service water. This is true softening, not physical scale conditioning.

2Does it use salt?

Yes. Water-softener salt in the brine tank regenerates the resin. Salt use depends on hardness, household water use and controller settings.

3Does it need a drain and electricity?

Yes. The control valve needs 110–240VAC, 50/60Hz power, and regeneration water must discharge to an approved drain.

4Which size should I choose?

Use a current hardness test, estimated daily gallons and peak simultaneous flow. The 32K, 48K and 64K models are rated for 9, 12 and 13 GPM respectively.

5Can it be used on city water or well water?

It can be part of either setup when hardness is the issue. Well water often needs testing for sediment, iron, manganese, sulfur odor, bacteria and other concerns before the treatment order is finalized.

6Will it remove sediment, iron, sulfur odor or microorganisms?

Not by itself. Those issues may require separate sediment filtration, iron treatment, carbon treatment or UV disinfection based on the water test.

7Can I install it myself?

Whole-home installation involves the main water line, bypass plumbing, drain routing and electrical access. A qualified plumber is recommended.

8What should I send before asking for a recommendation?

Send your hardness result, household size, number of bathrooms, pipe size, water source, installation photos and fixtures likely to run at the same time.

Need help choosing the right setup?

Send your water-meter area photo, pipe connection, power availability and planned equipment layout. We can help check whether GX-WS fits before purchase.
