Catch Sediment Before It
Travels Through Your Home
- The first-stage PP filter helps reduce dirt, rust, and suspended particles in incoming water.

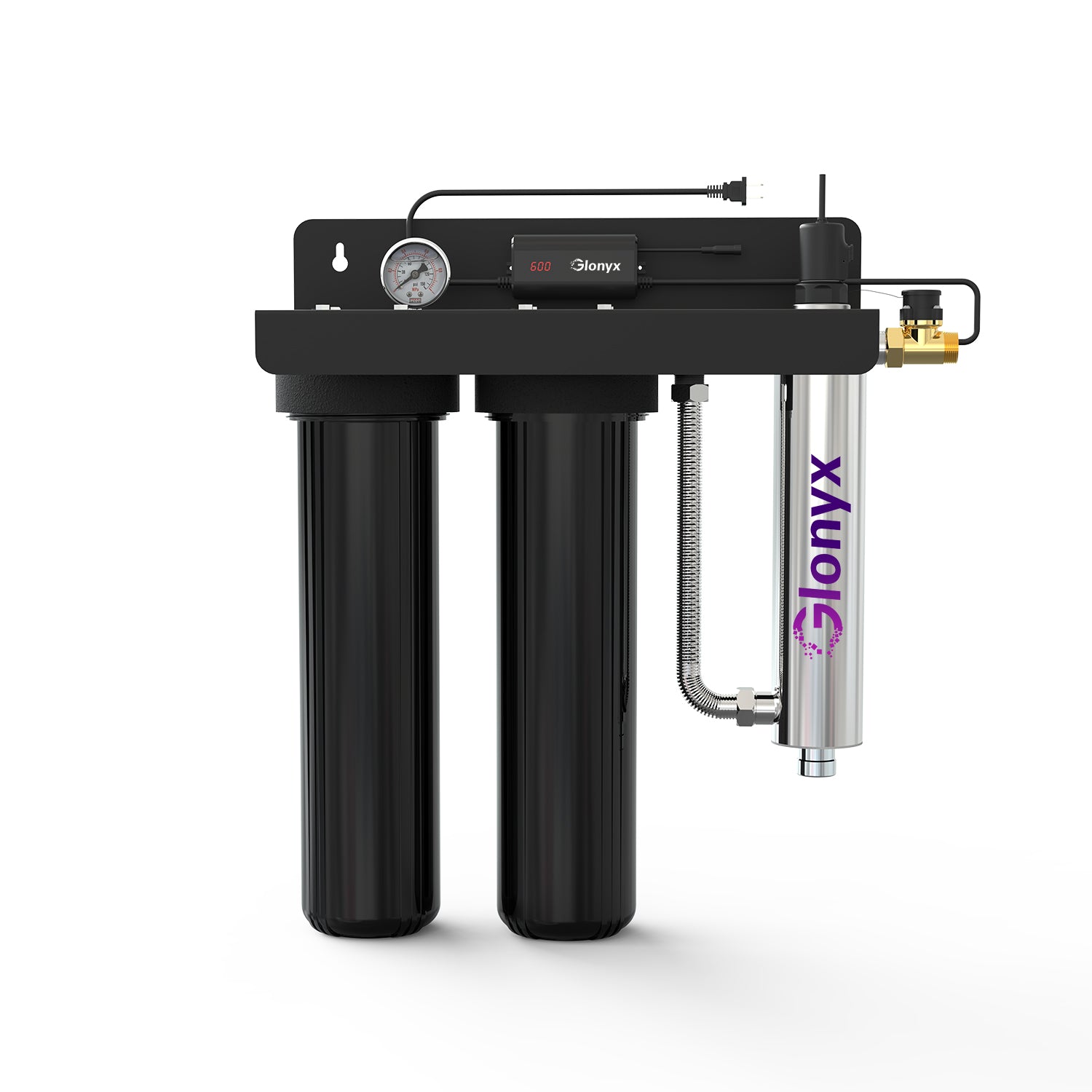

Glonyx Whole-House Filtration System with Flow-Controlled UV
Model Number: GX-WP-E20T
Bring sediment filtration, carbon filtration, and UV treatment together at your home’s main water line. E20T helps reduce dirt, rust, and chlorine taste and odor, then adds a separate UV treatment stage.
- Less sediment. A 5-micron filter helps catch dirt, rust, and suspended particles.
- Less chlorine taste and odor. — A carbon block treats water before it reaches the UV chamber.
- Flow-controlled UV. — The controller manages lamp operation in response to water use.
Rated flow: 45 LPM / 12 GPM at the stated reference condition.
PP + CarbonBlock Filtration

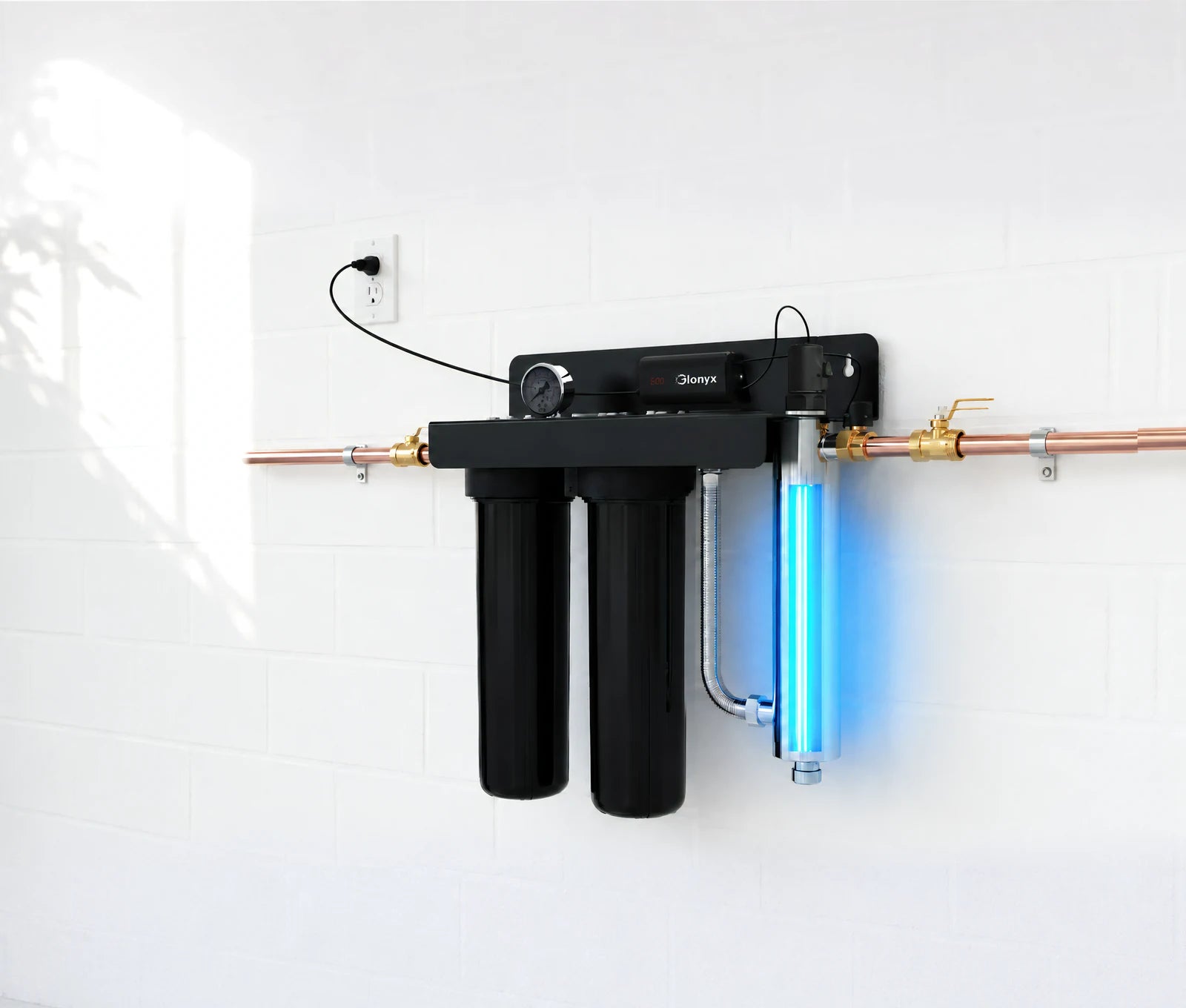

Flow-Activated UV
8,000-HourLamp Life
One System
Three Practical Stages

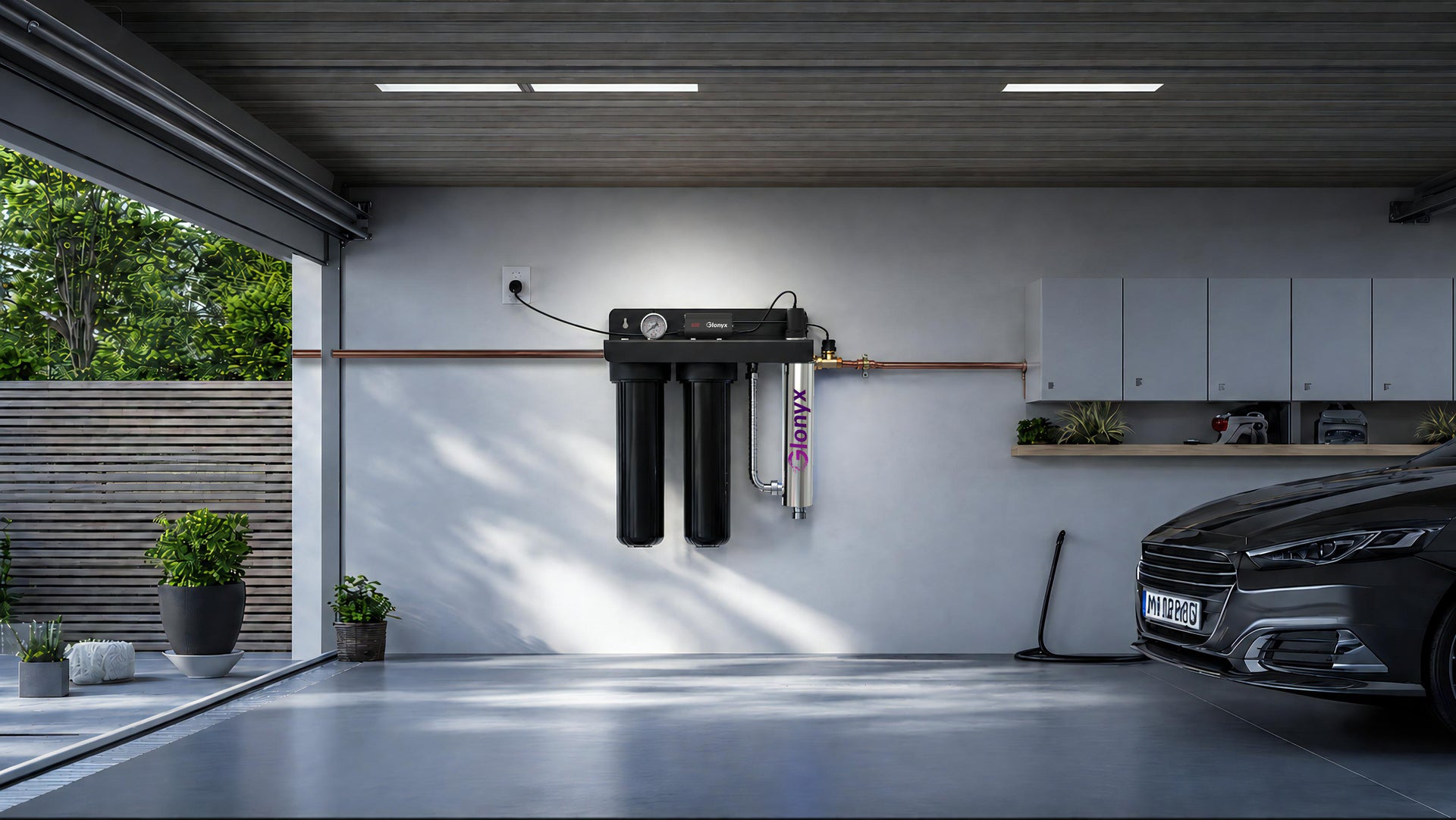

Slide to see how sediment, carbon, and UV treatment fit behind the finished cover.
Every Tap Gets
the Same Three-Stage Treatment
Catch Sediment Before It
Less Chlorine Taste.
Less Chlorine Odor.
- The carbon block helps reduce chlorine-related taste and odor before water moves to the UV stage.
A Separate Stage
for UV Treatment
- After sediment and carbon filtration, water passes through the UV chamber for microbial treatment.

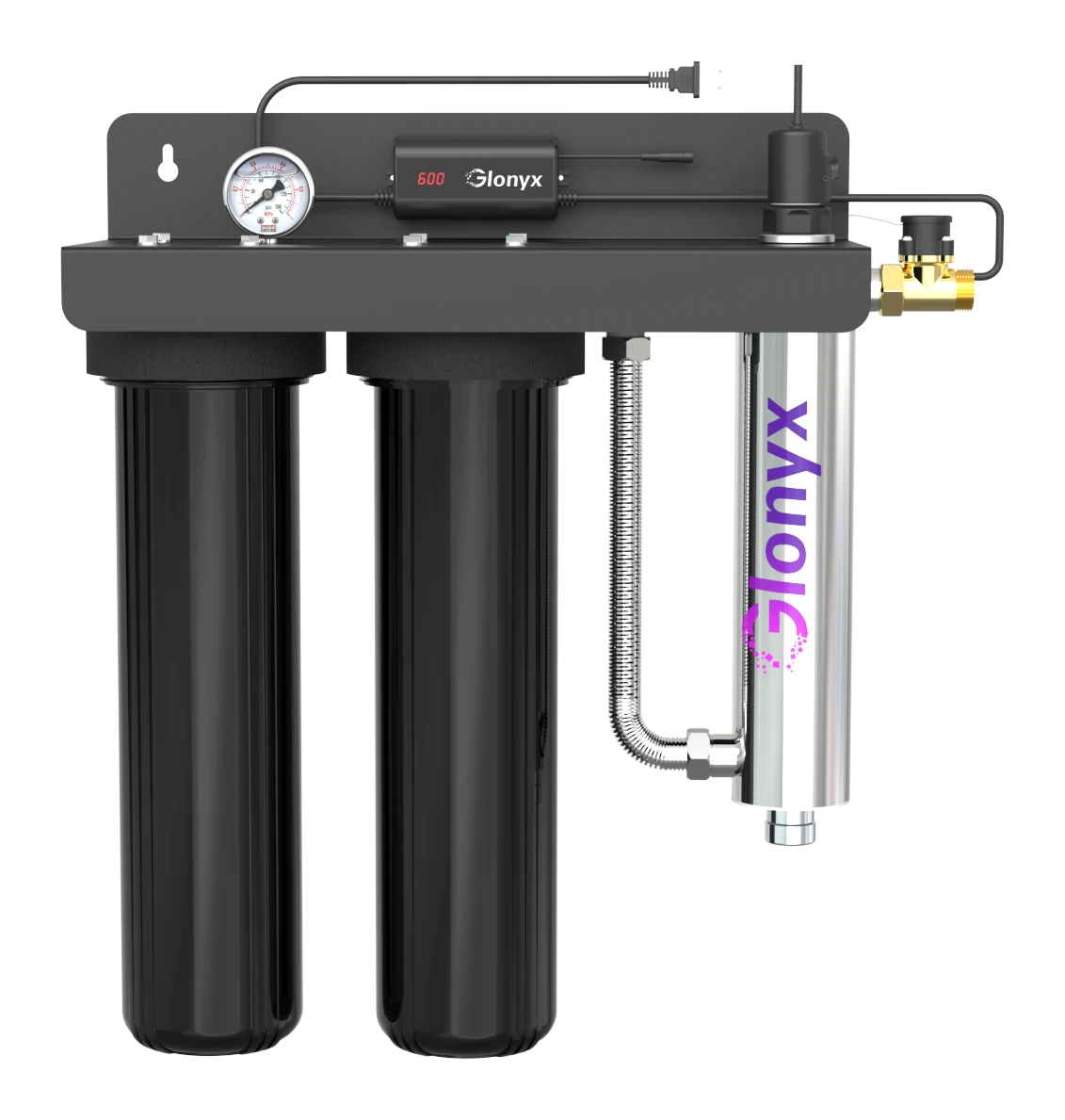

Model
GX-WP-E20T
Whole-house two-stage filtration + UV water treatment system.
Stages
PP + Carbon block + UV
5 μm PP sediment filtration, carbon block filtration, and flow-activated UV treatment.
Filter size
Two 20" × 4.5" filters
One 5 μm PP sediment filter and one carbon block filter.
UV lamp
48W · 8,000 hours
A flow switch activates the UV lamp only when water moves through the system.
Rated flow
45 LPM / 12 GPM
Whole-house water treatment flow rating.
Connection
1" inlet / outlet
Inlet: 1" female thread. Outlet: 1" male thread.
Pressure
10–100 psi
Maximum pressure: 10 bar.
Water temperature
39–99°F
Use within the listed operating water-temperature range.
UVT
>85%
Recommended inlet UV transmittance for stable UV treatment.
Flow activation
Built-in flow switch
The UV lamp operates on demand when water flow is detected.

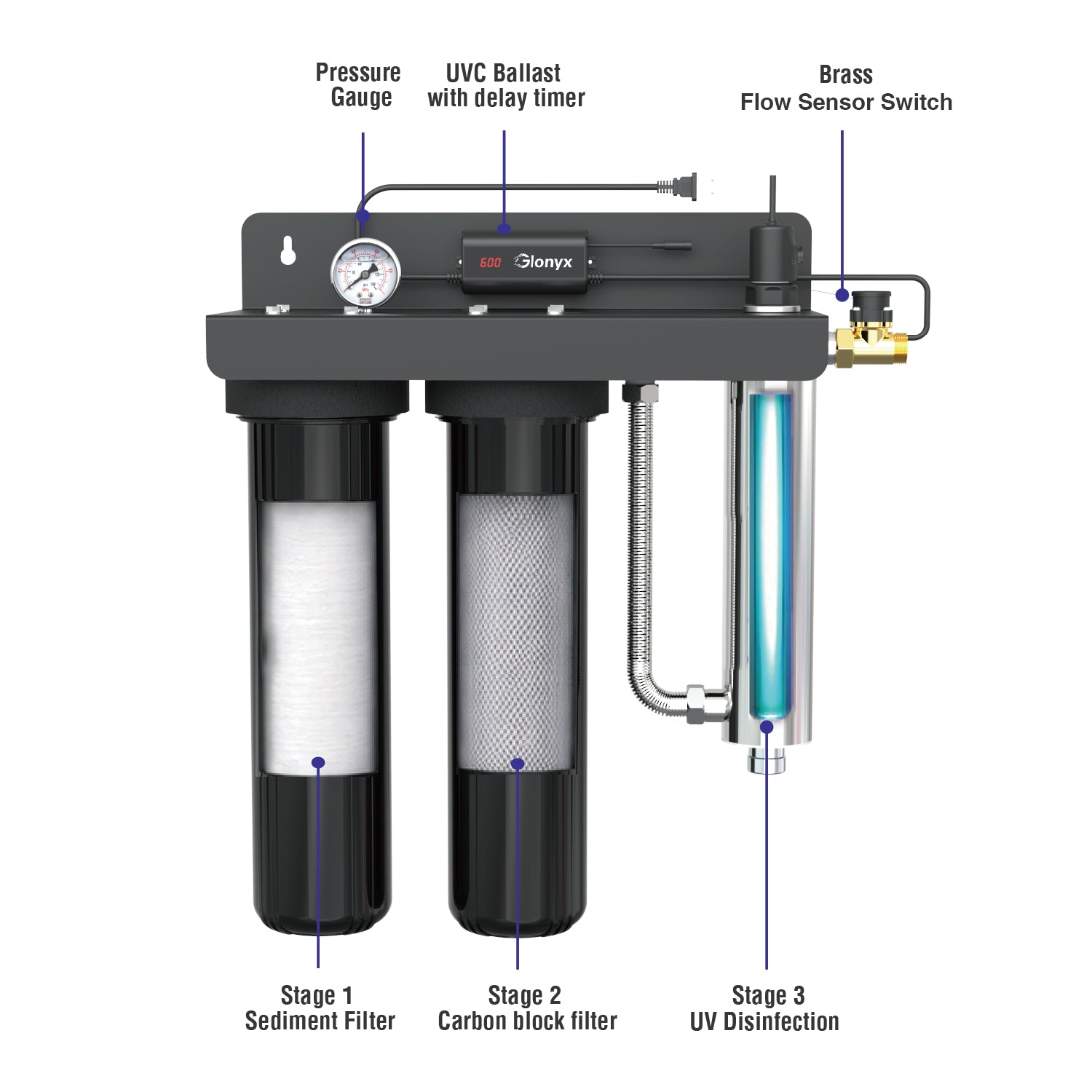

What each stage is designed to address
5 μm PP sediment filter
Visible particles
Helps reduce sediment, rust, dirt, and suspended particles before the second filter stage.
Carbon block filter
Taste and odor support
Adds carbon filtration support for chlorine taste and odor before the UV chamber.

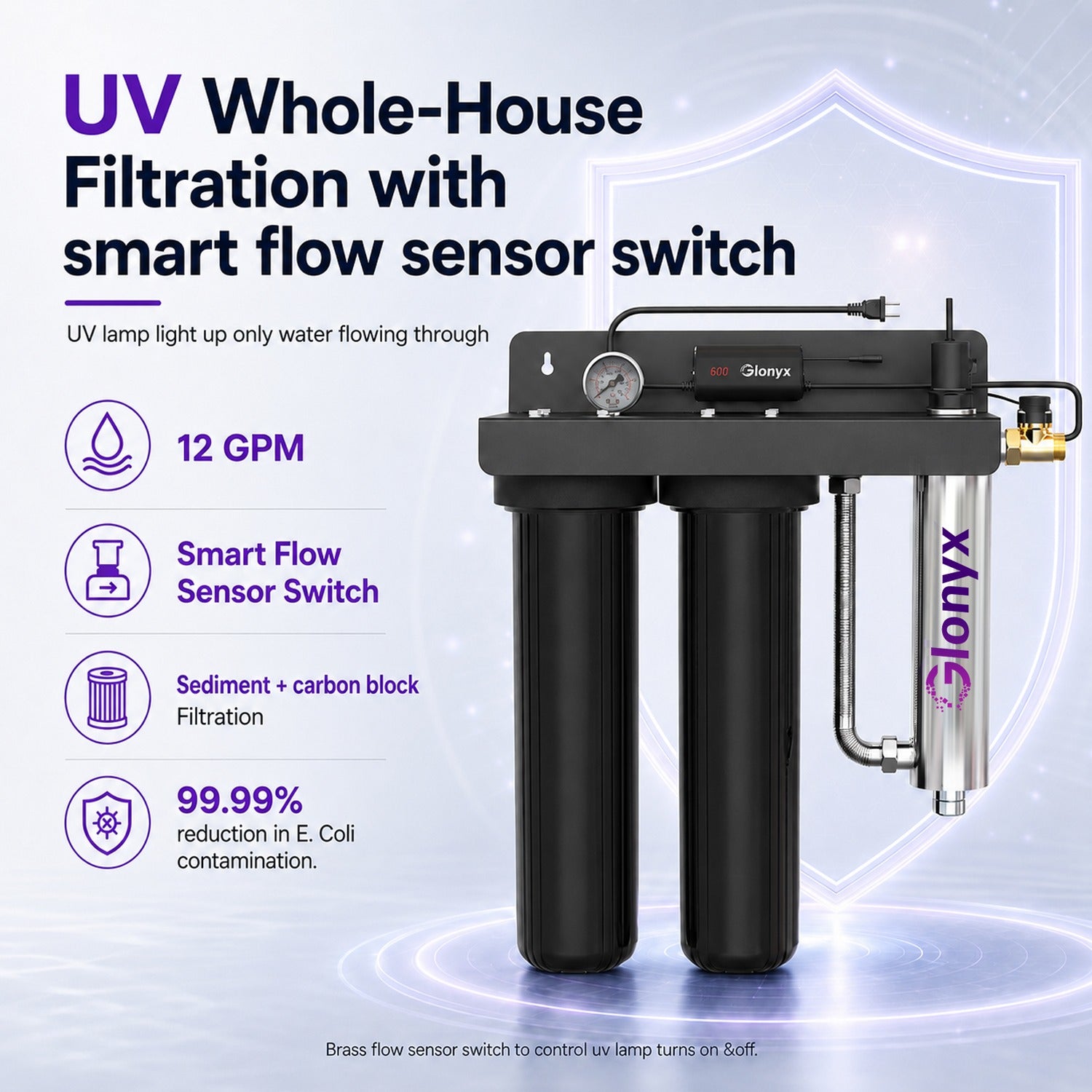

Built-in flow switch
On-demand lamp operation
Turns the UV lamp on only while water is moving through the system.
48W UV lamp chamber
Flow-through UV treatment
Provides UV treatment at the rated flow when inlet water meets the recommended conditions.
Inlet water quality
Clear water matters
Recommended inlet conditions: hardness <7 gpg, iron <0.3 ppm, manganese <0.05 ppm, turbidity <1 NTU.

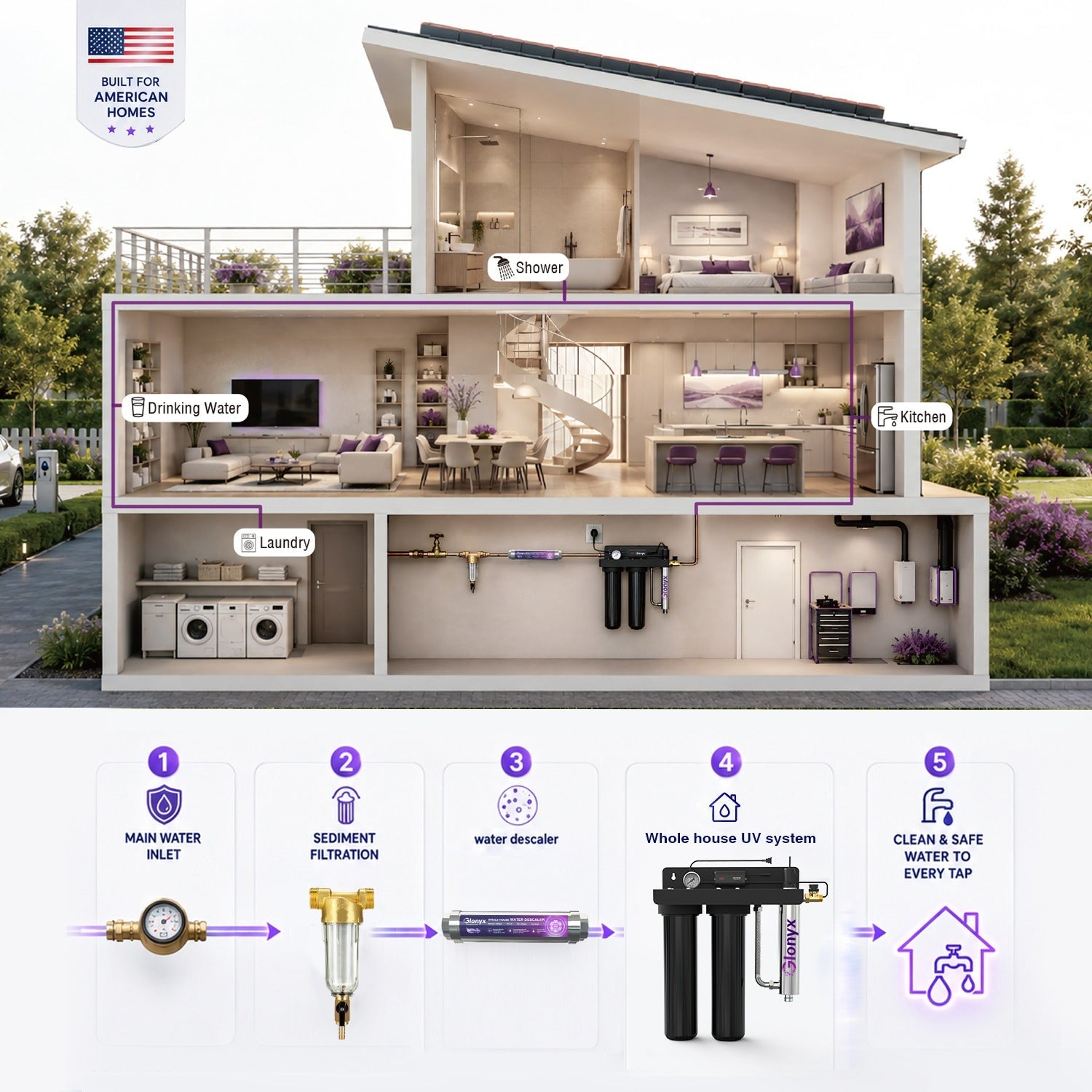

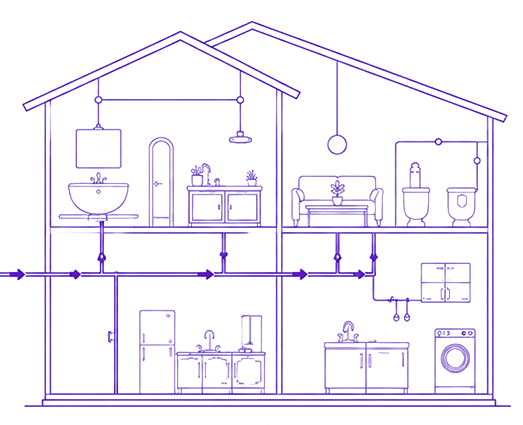

Whole-house role
Point-of-entry setup
Designed for main water-line installation before water branches to daily-use fixtures.
GX-WP-E20Twater line Home fixtures
Installation checks

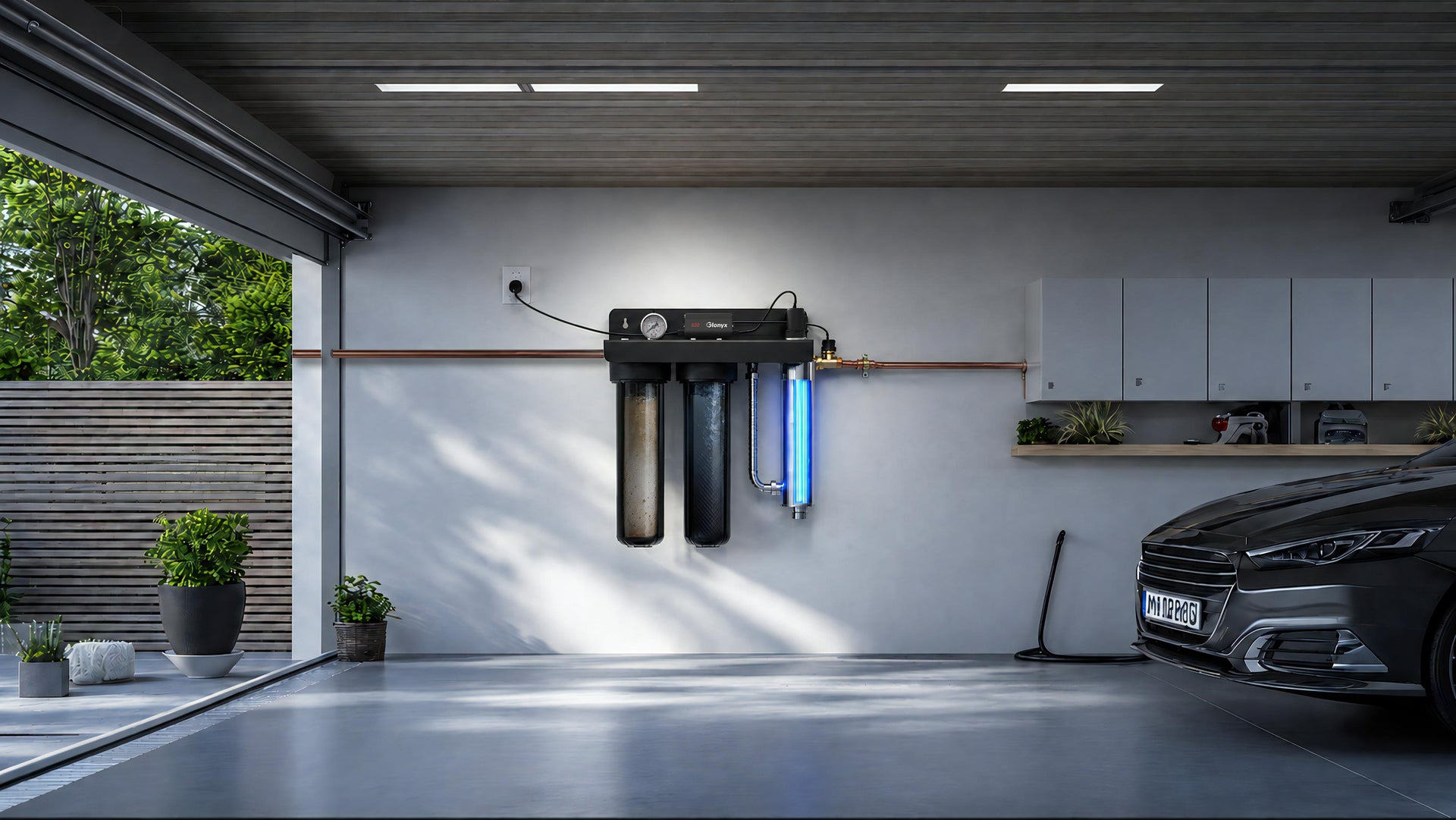

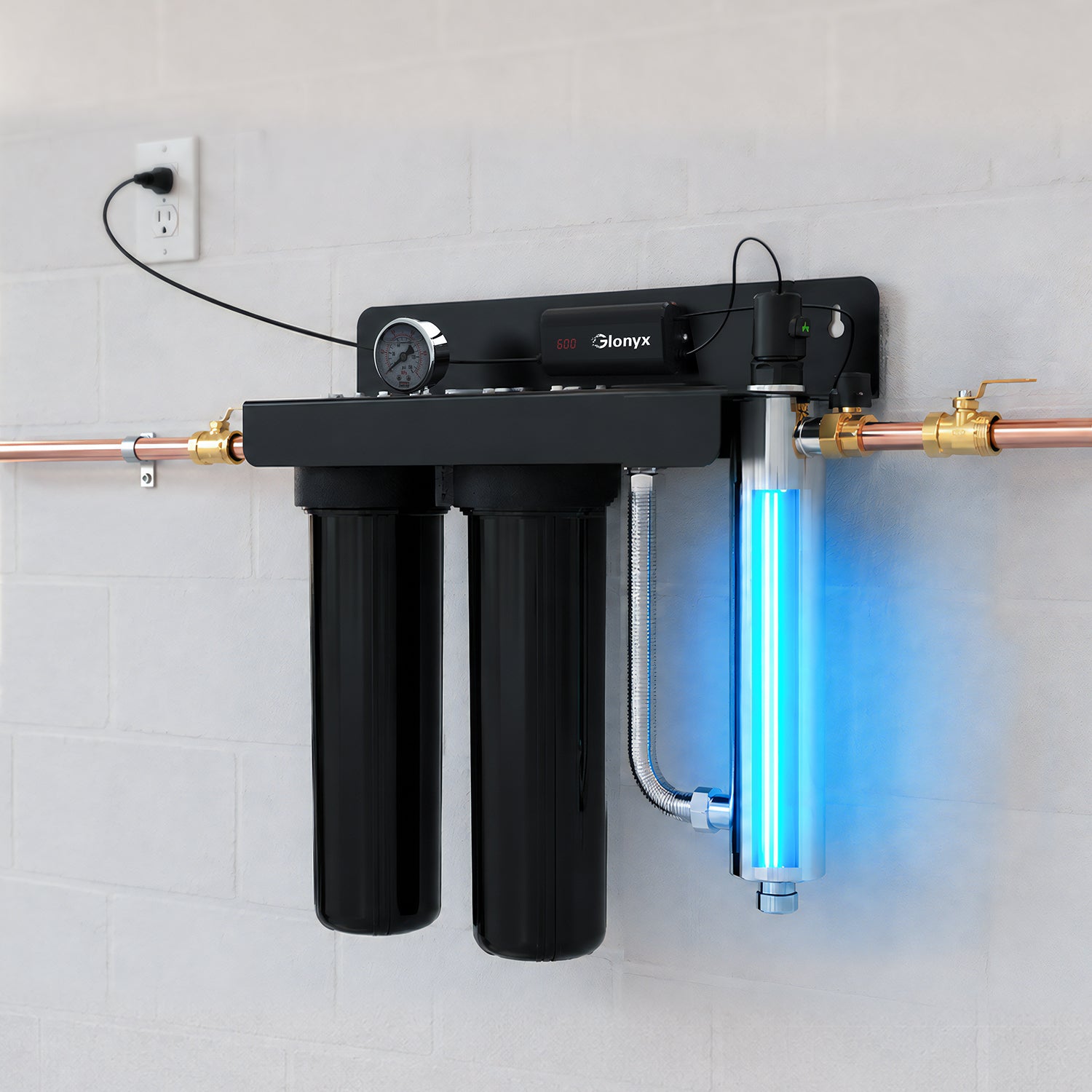

- Install on the whole-house point-of-entry water line.
- Confirm inlet 1" female thread and outlet 1" male thread compatibility.
- Keep inlet pressure within 10–100 psi and below the 10 bar maximum.
- Use a plumber when local code, pipe work, or bypass layout requires it.
Before startup
- Confirm both 20" × 4.5" cartridges—the 5 μm PP filter and carbon block filter—are seated correctly.
- Inspect housings, seals, ports, flow switch, and UV chamber for leaks or loose connections.
- Flush both filtration stages according to setup guidance.
- Confirm inlet UVT, turbidity, hardness, iron, and manganese are within recommended conditions.
Installation Manual
Model-specific installation instructions.
Request Installation InstructionsInstallation Video
Get help with model-specific installation steps.
Get Installation SupportYour replacement part numbers
20 × 4.5-inch filter parts: WP-20BB housing, WP-20PP sediment cartridge, and WP-20CTO carbon block.
GX-WP-E20T: 48 W UV lamp and flow-control UV controller. Contact support to match the quartz sleeve.
Find replacement partsMaintenance Instruction
Model-specific maintenance and service instructions.
Request Maintenance InstructionsSetupPre-installation guidance
ServiceReplacement reminder support
CheckFlow and pressure review

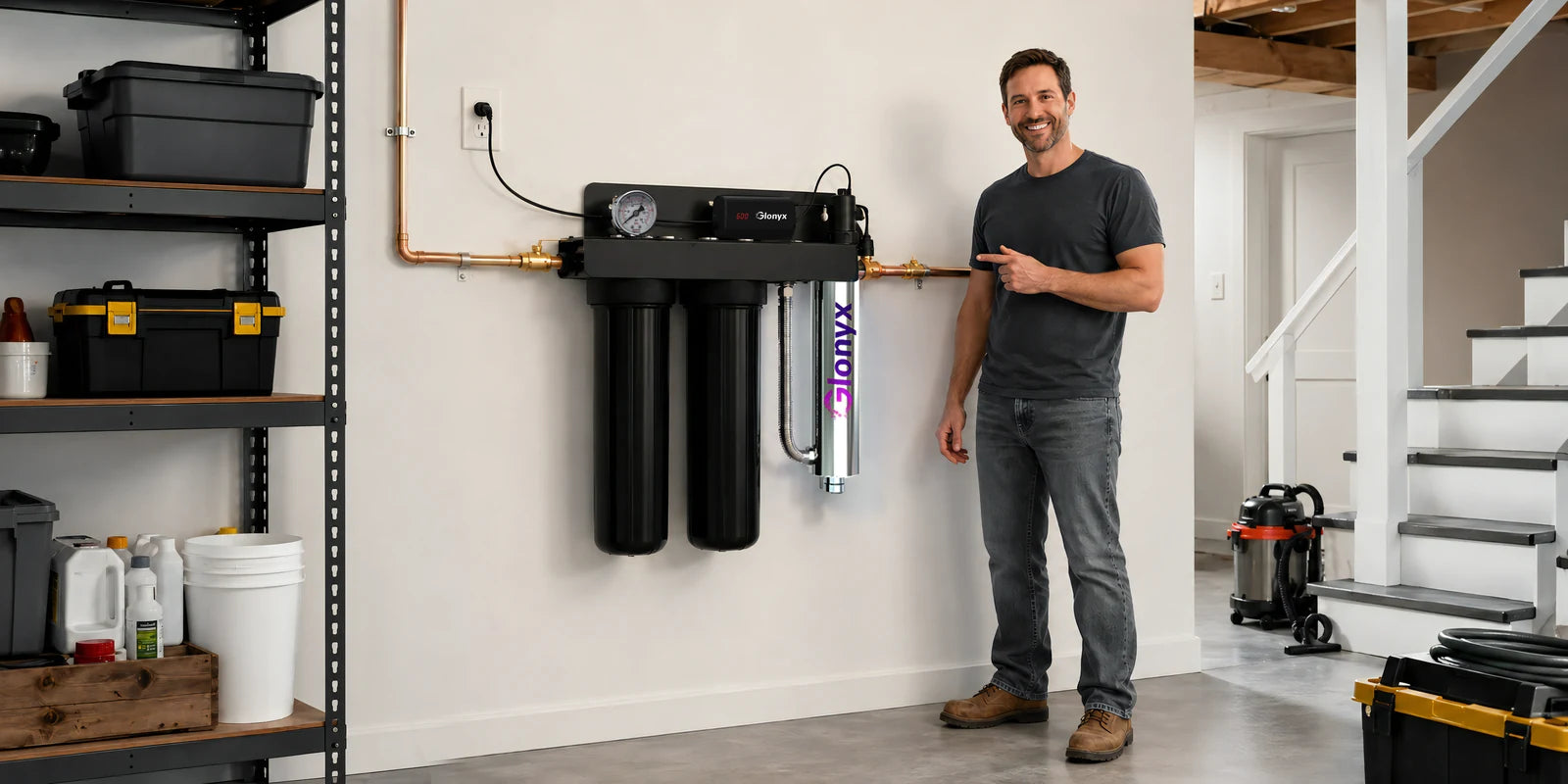

Warranty & after-sales support
- Replacement planning support for the PP filter, carbon block filter, UV lamp, and quartz sleeve.
- Pre-installation setup guidance before ordering or installation.
- Troubleshooting support for setup, flow switch, pressure, lamp, and leak questions.
Not Sure E20T Fits
Your Home?
- Your model or order number, if you already purchased.
- Photos of the installation area, including inlet, outlet, and power access.
- Your water source, pipe size, pressure range, and estimated peak flow.
- Photos or a short video if you are troubleshooting a leak, UV lamp issue, or performance concern.
Typical package contents
GX-WP-E20T main system
Whole-house two-stage filtration and flow-activated UV layout.
20" × 4.5" PP sediment filter
5 μm sediment pre-filtration stage.
20" × 4.5" carbon block filter
Second filtration stage before the UV chamber.
48W UV lamp chamber
Flow-through UV chamber with an 8,000-hour lamp and quartz sleeve.
Built-in flow switch
Activates the UV lamp only while water is moving through the system.
Installation accessories
Accessories may vary by final order configuration.
GX-WP-E20T FAQ
FAQ
1What changes after E20T is installed?
GX-WP-E20T combines a 5 μm PP sediment filter, a carbon block filter, and a flow-activated 48W UV lamp chamber in one whole-house point-of-entry system.
2What filter size does it use?
It uses two 20 × 4.5-inch cartridges: one 5 μm PP sediment filter and one carbon block filter.
3Does the UV lamp run all day?
The matched controller uses a flow-switch input to manage lamp operation, including a delayed shutoff after flow stops.
4How long is the UV lamp designed to operate?
The 48W UV lamp has an 8,000-hour rated operating life under the listed operating conditions.
5What flow rate is it designed for?
The rated reference flow is 12 GPM / 45 LPM at the stated UV-dose condition.
6What plumbing connection does it use?
The system has a 1-inch female inlet and a 1-inch male outlet. Confirm fitting compatibility before installation.
7What pressure and temperature range should I use?
Use 10–100 psi inlet pressure, below the 10 bar maximum, and water within the listed 39–99°F range.
8What inlet water quality is recommended?
Recommended inlet conditions include UVT above 85%, hardness below 7 gpg, iron below 0.3 ppm, manganese below 0.05 ppm, and turbidity below 1 NTU.
9Does it soften water or reduce TDS?
No. Sediment, carbon, and UV stages do not soften water or reduce total dissolved solids.
10What should I check before I buy?
Confirm water source, peak flow, pipe size and thread, pressure, installation space, electrical access, and inlet-water conditions.
Not Sure E20T Fits
Your Home?
Send your pipe size, peak flow, water source, pressure range, and photos of the installation area. We can help you decide whether GX-WP-E20T fits your home.
Ask Setup Support Recommended for new customers, or if you are unsure about flow, pressure, or equipment match.Replacement Filters, Ready When You Need Them
Find WP-20PP sediment filters and WP-20CTO carbon blocks for your E20T system.
—
★★★★★
