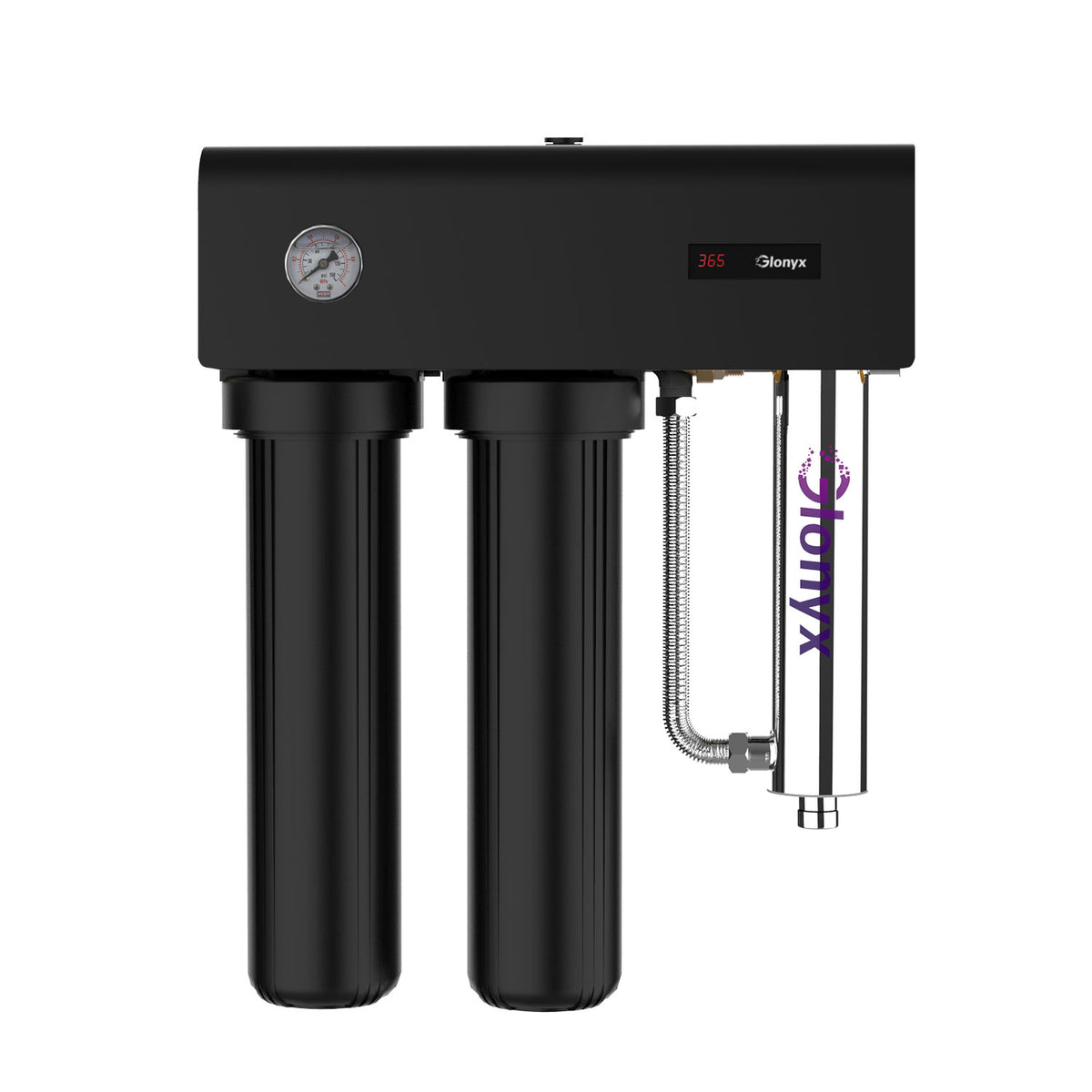

Glonyx GX-WP-S20T whole-house water filtration and UV system
No reviews yet

Glonyx Whole-House Filtration System with Countdown UV

Model Number: GX-WP-S20T

Catch sediment, help reduce chlorine taste and odor, and add UV treatment in one whole-house system. S20T brings three serviceable stages together before water branches to your faucets and showers.

3-stage whole-house filtration + UV

Choose your purchase option
Water Treatment
Before Every Tap
Standard 20-Inch Filter
Annual UV Lamp Change

Three Numbers to Know

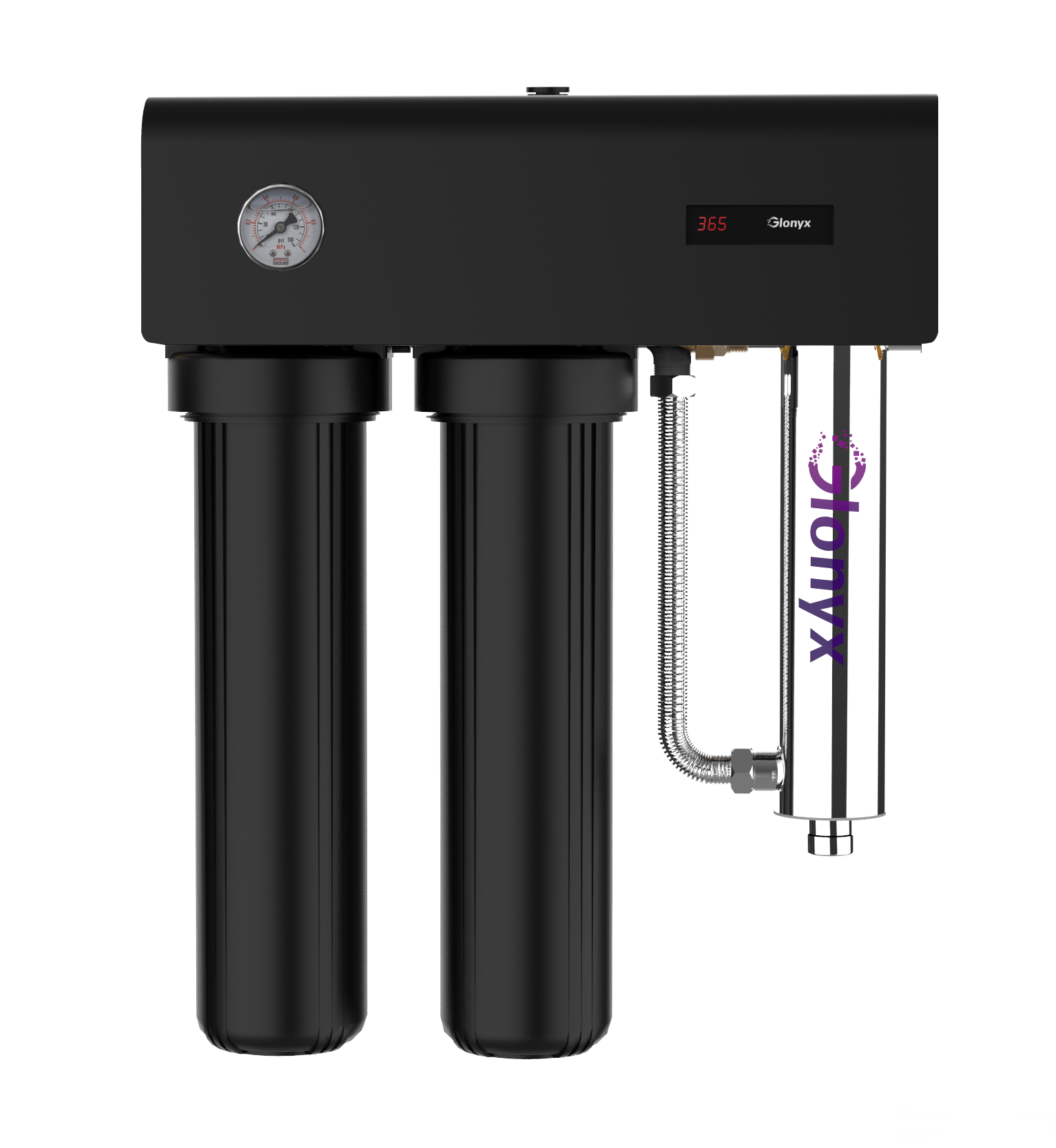

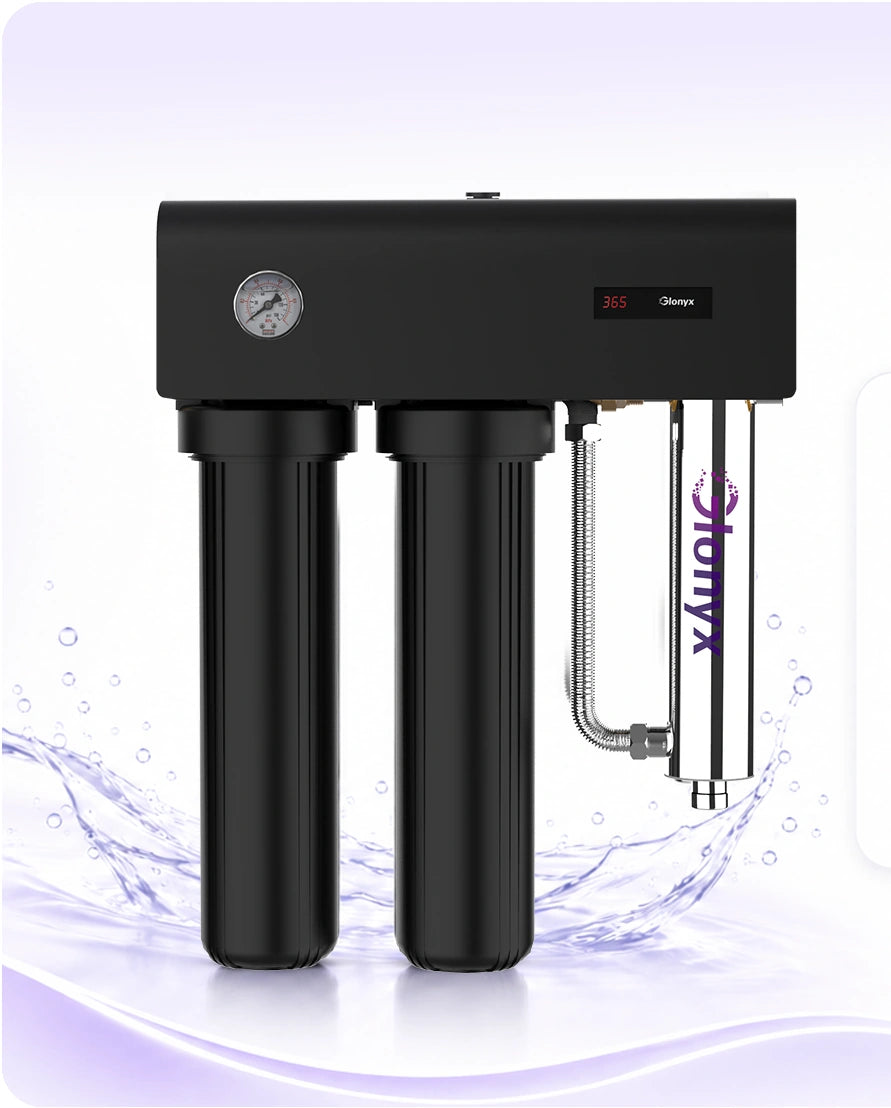

GX-WP-S20T whole-house filtration and UV system
3Stages

One Integrated System

Sediment, carbon, and UV treatment in one point-of-entry sequence.

12GPM

Made for Whole-Home Flow

UV dosage 30 mJ/cm²

Seereport

A Separate UV Treatment Stage

UV treatment adds a separate stage after sediment and carbon filtration. It does not remove dissolved minerals.

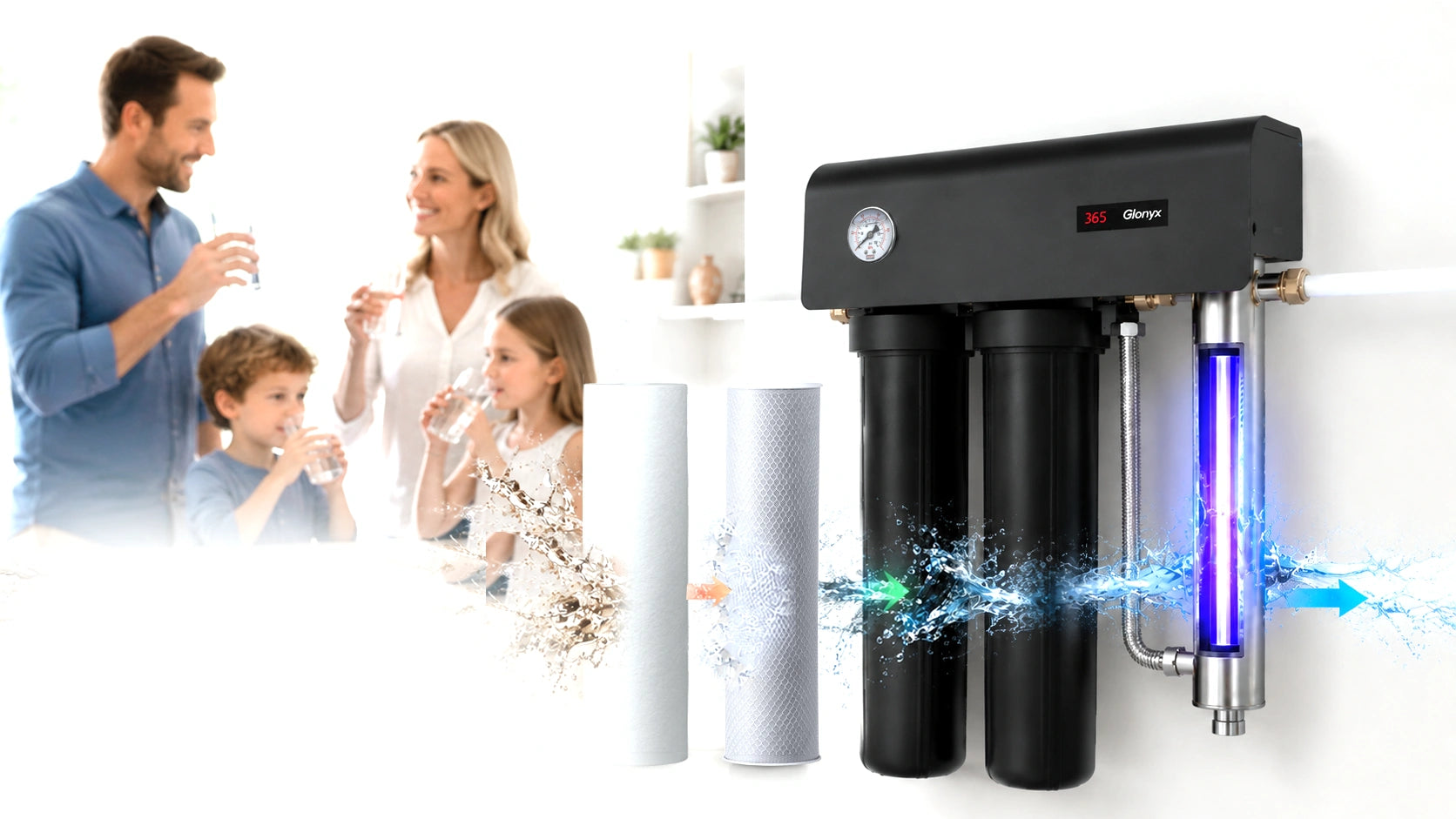

How Water Moves Through?

As water enters your home, it passes through particle and carbon filtration before the final 48W UV stage, then continues to faucets, showers, and water-using appliances.

GX-WP-S20T filtration and UV treatment path in a home setting
01

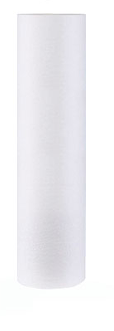

5 μm PP SedimentCaptures visible particles
02
Carbon BlockHelps with chlorine taste and odor
03
48W UV TreatmentFinal microbiological treatment stage

Made for the Way
Your Home Uses Water

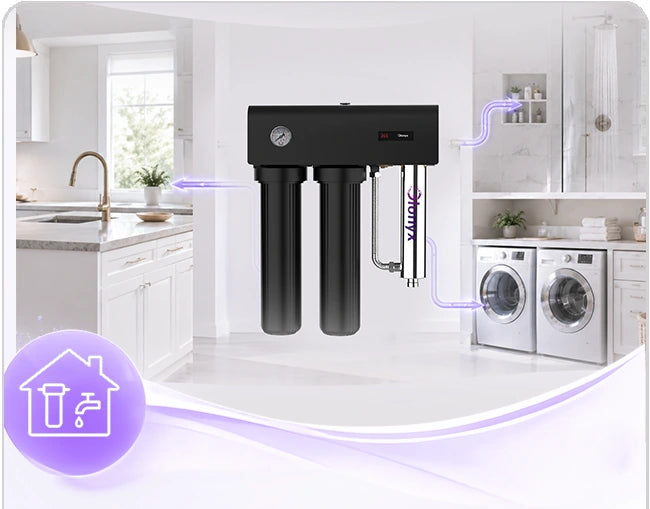

GX-WP-S20T installed for whole-home point-of-entry treatment

One Service Point for the Whole Home

  • Being installed before water branches through the home.
  • All three treatment stages stay together in one service location.
GX-WP-S20T supporting treated water throughout the home

Improve Water Quality

  • Sediment filtration helps reduce visible particles.
  • Carbon filtration helps reduce chlorine-related taste and odor.

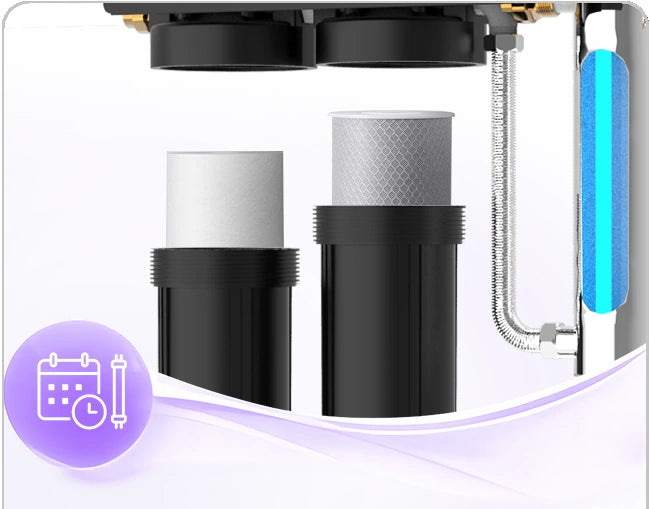

GX-WP-S20T maintenance planning and service components

Maintenance You Can Plan

  • Both filters use the standard 20 × 4.5-inch size.
  • Recommend to replace sediment filter every 3 months, carbon filter every 6 months.
  • Recommend to change UV lamp every one year.
GX-WP-S20T whole-house filtration and UV system
Model

GX-WP-S20T

Includes a S20-B48 ballast with a 365-day service countdown.

Treatment stages

Sediment + Carbon + UV

Three-stage point-of-entry treatment for the whole home.

Filter size

Two 20" × 4.5" filters

5 μm PP sediment and carbon block cartridges.

UV lamp

48W UV lamp

Follow the lamp replacement schedule specified for your system.

Rated flow

45 LPM / 12 GPM

At the stated 30 mJ/cm² UV-dose condition.

Connection

1" female in / male out

Confirm local thread and fitting compatibility.

Operating range

10–100 psi

Listed water-temperature range: 39–99°F.

Product dimensions

23.6 × 26.6 × 9.1 in

600 × 675 × 230 mm; allow additional room for installation and service.

GX-WP-S20T FAQ

Frequently Asked Questions

1What does GX-WP-S20T do?

It combines sediment filtration, carbon filtration, and UV treatment at the main water line, before water reaches fixtures throughout the home.

2What does each treatment stage do?

The 5 μm PP filter captures visible particles, the carbon block helps reduce chlorine-related taste and odor, and the 48W UV lamp provides the final microbiological treatment stage.

3What test information is available for GX-WP-S20T?

Use the purifier within its rated flow and water-quality limits. Performance depends on water quality, flow, lamp and sleeve condition, and installation.

4How does the 365-day reminder help?

A built-in 365-day countdown helps you keep track of annual lamp service.

5Does the UV lamp stay on?

Yes. The UV lamp operates continuously while the system is powered, so the UV stage is ready whenever water is used.

6What is the rated flow?

The listed reference is 12 GPM / 45 LPM at 30 mJ/cm². Actual UV performance depends on flow, UVT, turbidity, lamp condition, sleeve condition, and installation.

7How much installation space do I need?

The system measures 23.6 × 26.6 × 9.1 inches (600 × 675 × 230 mm). Allow additional clearance below the filter housings and around the UV chamber for cartridge, lamp, and quartz-sleeve service.

8Why should I test my water before installation?

UV performance depends on inlet conditions such as UV transmittance, turbidity, hardness, iron, and manganese. A current water test helps identify any pretreatment needed before installation.

9Will S20T soften water or reduce TDS?

No. Sediment, carbon, and UV treatment do not remove dissolved hardness minerals or reduce total dissolved solids.

10What should I confirm before ordering?

Confirm your water source and test results, peak flow, 1-inch connection compatibility, 10–100 psi operating pressure, installation space, and access to dry, code-compliant power.

Need Help Sizing S20T
for Your Home?

Send your water test, peak flow, plumbing size, pressure, and a photo of the planned installation area. We can help check the fit before you order.

Ask Setup SupportRecommended if you are unsure about water quality, flow, plumbing, or service space.
