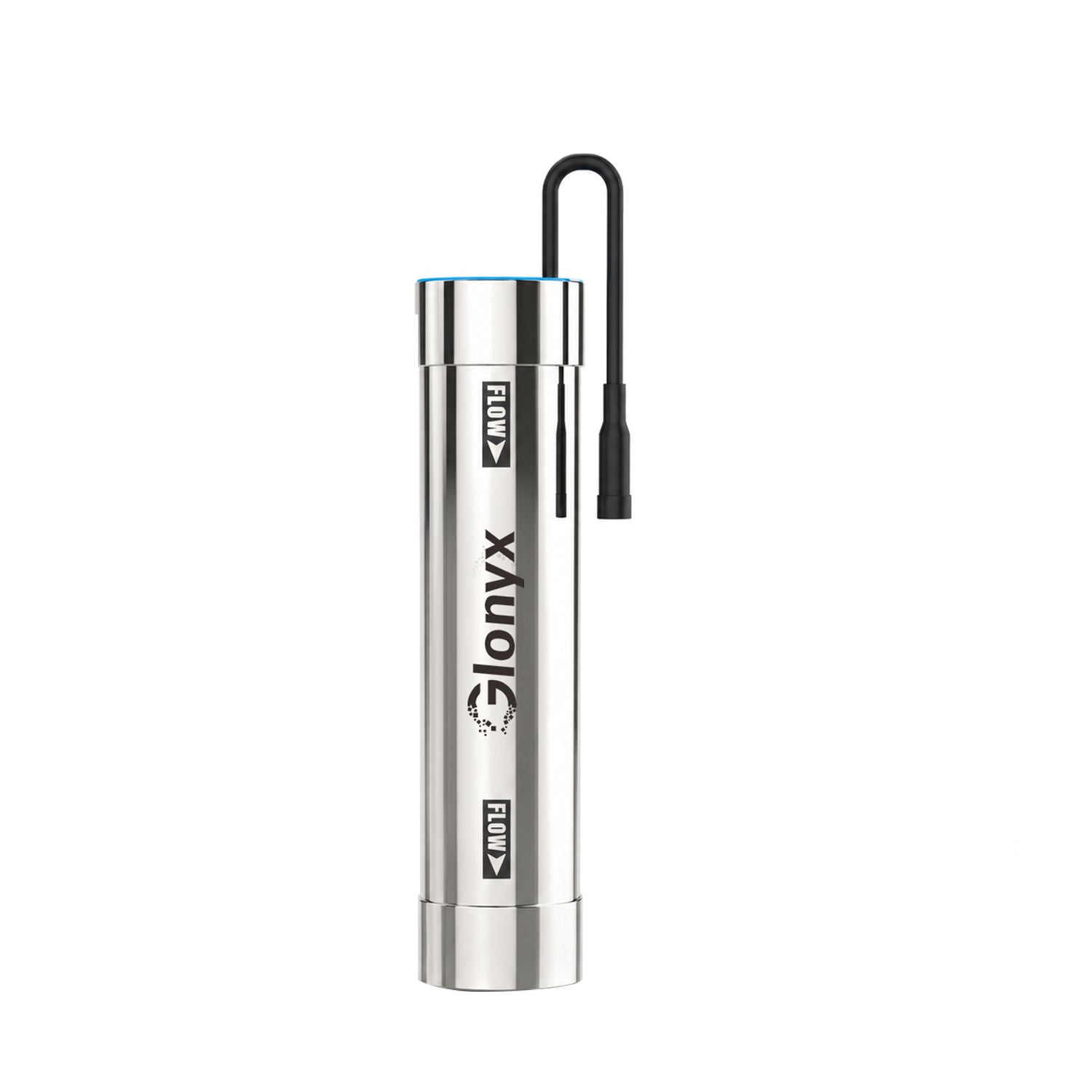

Glonyx GX-LED-12E whole-house UVC LED water purifier

No reviews yet

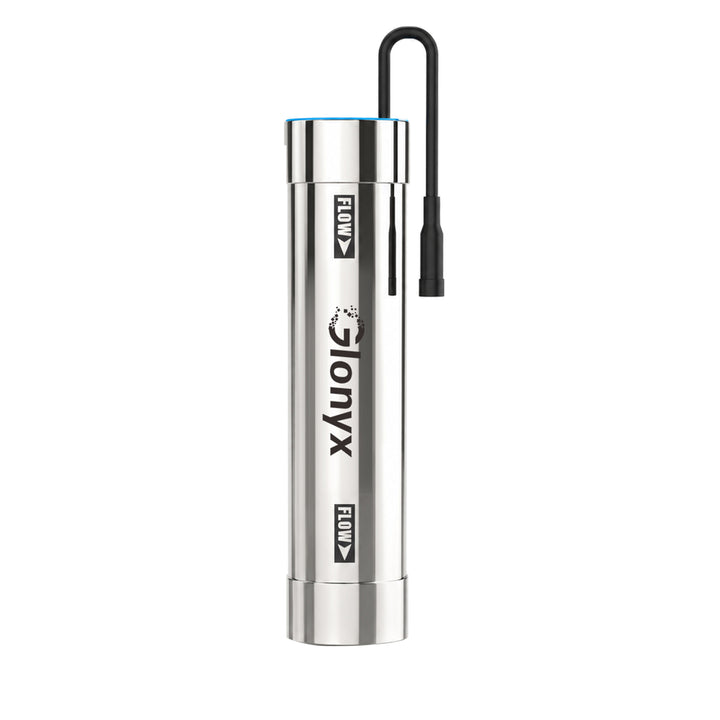

Glonyx Compact Whole-House UV LED Water Purifier

Name: Glonyx Compact Whole-House UV LED Water Purifier
Brand: Glonyx
SKU: GX-LED-12E
Price: 588.00 USD
Availability: InStock

Model Number: GX-LED-12E

On-Demand UV Treatment for Your Main Water Line.

GX-LED-12E starts with water flow and returns to standby when flow stops. Its compact design adds a UV stage after suitable pre-filtration. Check rated flow, plumbing adapters, and installation space before choosing your system.

12 GPM · 16W Whole-House UVC LED System

Built-In Flow
Sensor Switch

16W
Low-Power

12 GPM
Whole-Home

5,000-Hour LED Runtime Used Only When Water Flows

GX-LED-12E runs only when your home uses water. The built-in flow switch activates the UVC LEDs automatically and turns them off when flow stops, so the 5,000-hour rating is used during actual treatment—not while the water line sits idle.

5,000hours of LED runtime

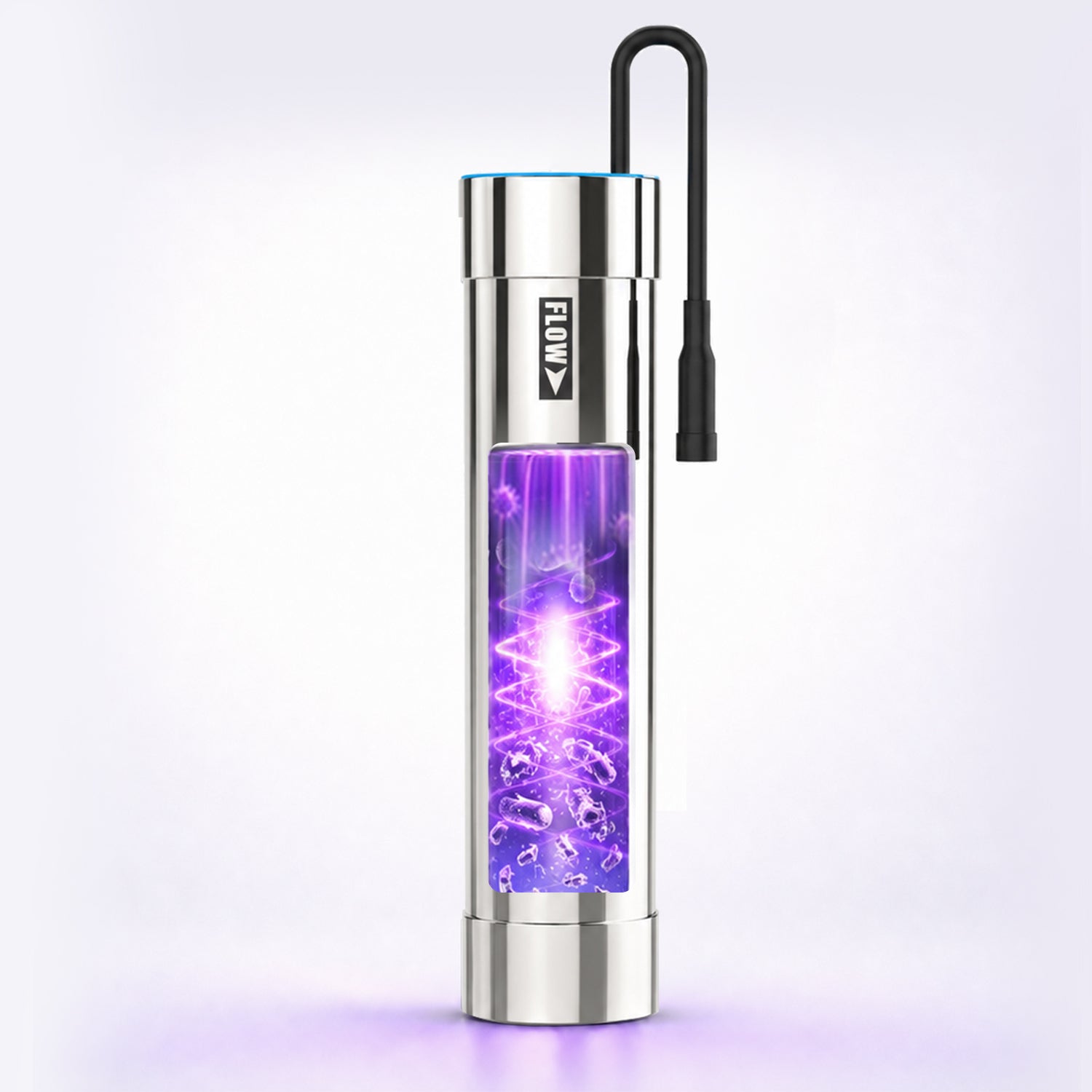

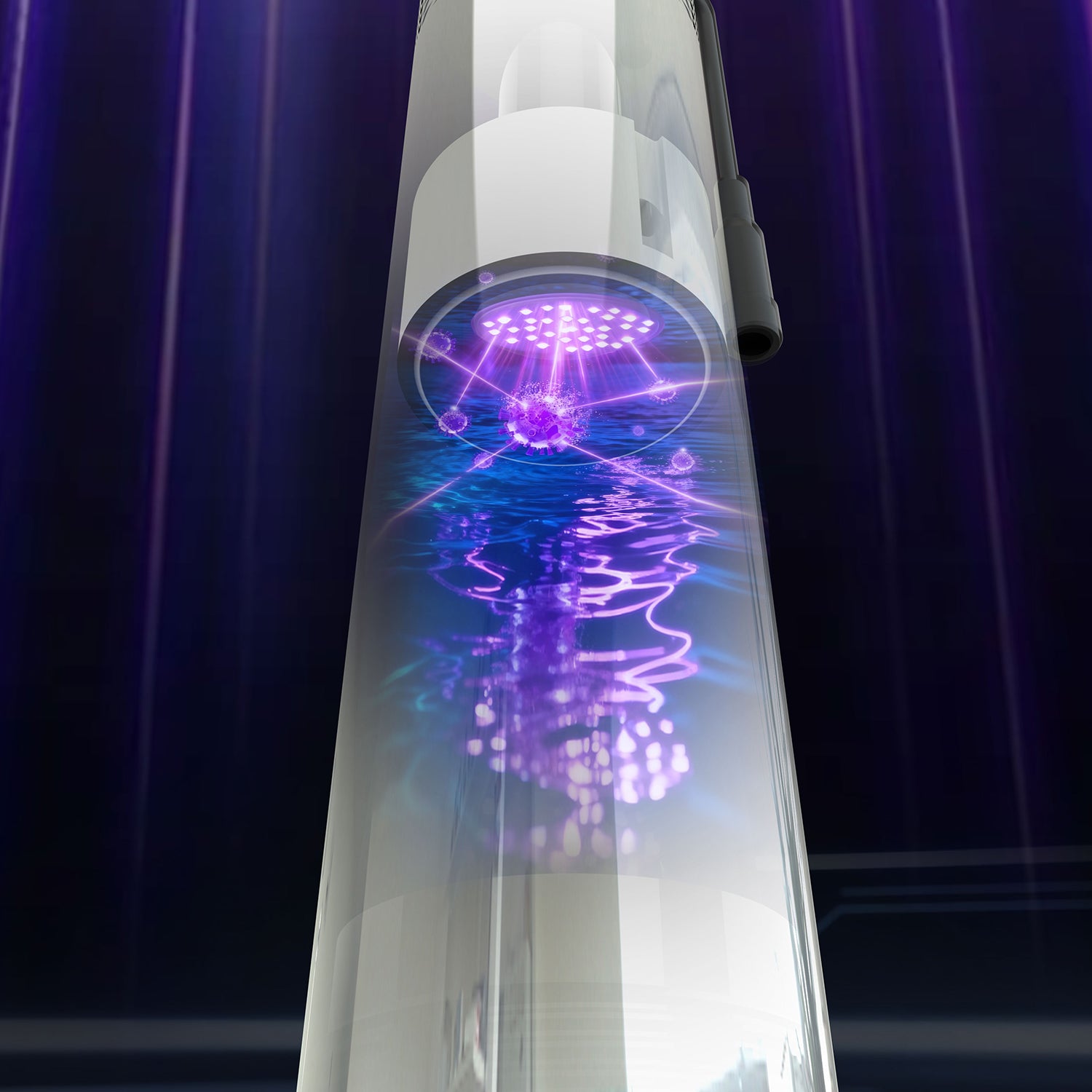

GX-LED-12E UVC LED chamber treatment illustration

Service planning is based on LED operating time and system condition. Follow the maintenance requirements for your water quality and installation.

Actual service life depends on household water use, water quality, inlet conditions, and installation.

Automatic, on-demand operation

Whole-house UVC LED treatment starts with water flow.

Runtime used only when needed

The UVC LEDs remain off while there is no water demand.

Built for whole-house flow

Rated for 12 GPM / 45 LPM with 16W total power and 700mW UVC LED output.

Your Water Moves. Treatment Starts.

GX-LED-12E chamber with an illustrated UVC treatment view

Flow-activatedUV treatmentafter suitable pre-filtration

Flow-activated UVC LED disinfection

Automatic Protection for Everyday Water Use

Installed at the point of entry after suitable pre-filtration, GX-LED-12E detects household water demand and activates the UVC LEDs only during flow.

Water enters the chamber after suitable pre-filtration.
The flow sensor detects water movement and activates the UVC LEDs.
UVC exposure takes place as water passes through the treatment chamber.
When flow stops, the UVC LEDs switch off automatically.
The status ring shows standby, working, or fault conditions.

Why it matters:

UV is a microbiological treatment stage. It does not replace sediment filtration, carbon filtration, softening, or other treatment selected for the home’s water conditions.

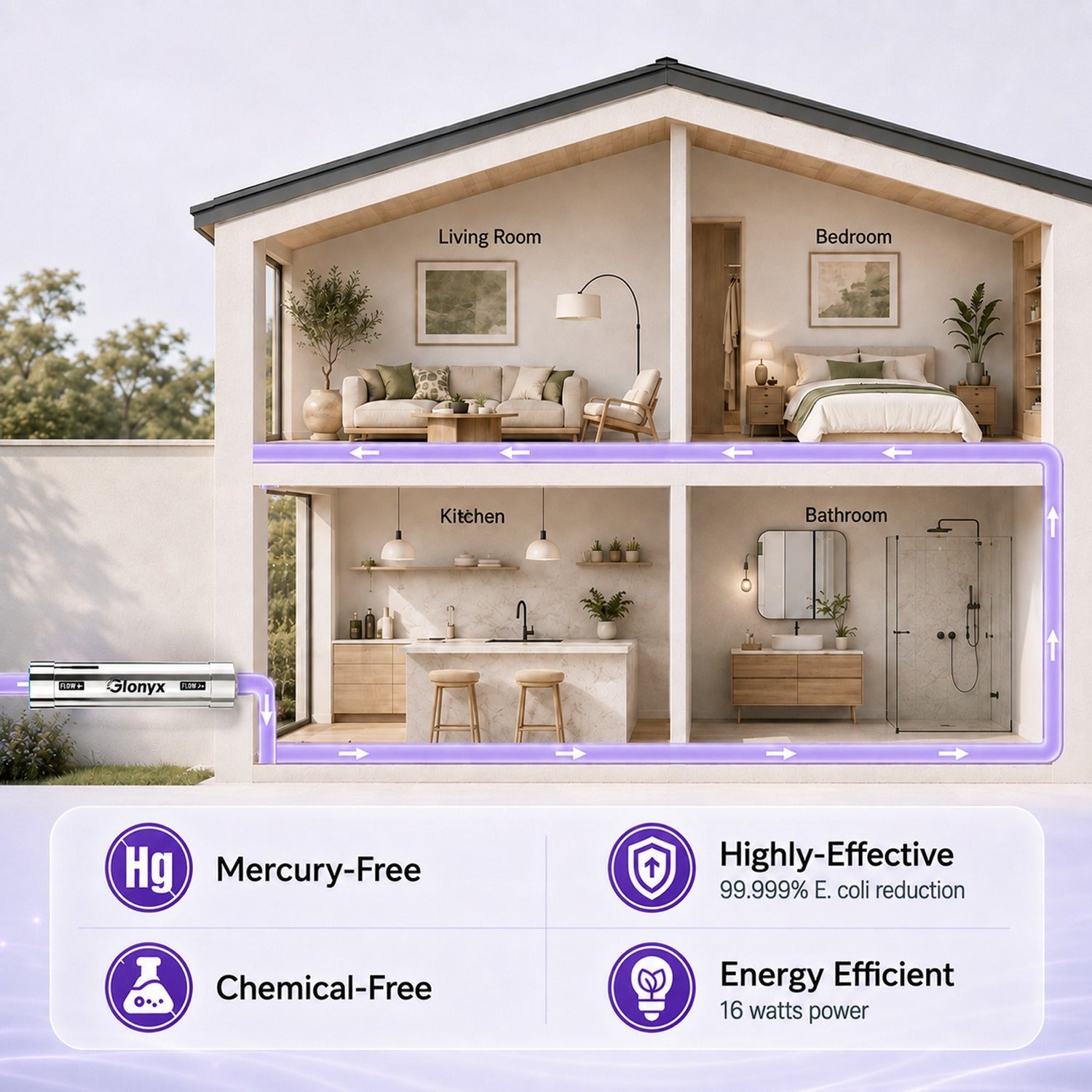

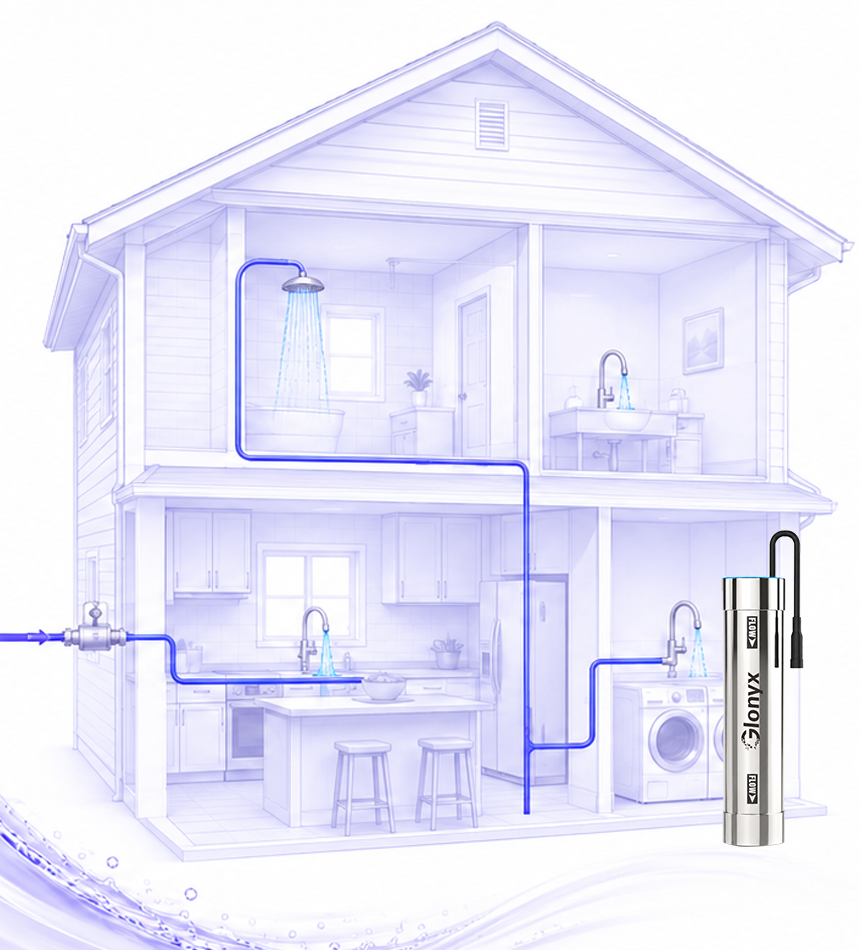

Illustrated whole-house point-of-entry water path with GX-LED-12E

Max Flow Rate

Rated flow: 12 GPM / 45 LPM.

Water Conditions

UV treatment works as water passes through the chamber after suitable pre-filtration. It does not remove dissolved minerals or chemical contaminants.

Home Application

Residential point-of-entry installation.
Size from measured peak flow.

UVC LED Rating

Total power: 16W
UVC LED output: 700mW
LED rating: 5,000 hours

Plumbing

G1 female ports; confirm the correct 1-inch male adapters for the home’s pipe standard.
Install after suitable pre-filtration and plan bypass valves, power access, and service clearance.

Understand the treatment scope of GX-LED-12E

Whole-house UVC LED disinfection is a microbiological treatment stage, not a substitute for filtration.

UV treatment works as water passes through the chamber. Clear water, suitable pre-filtration, flow, and maintenance help the system deliver its intended treatment conditions.

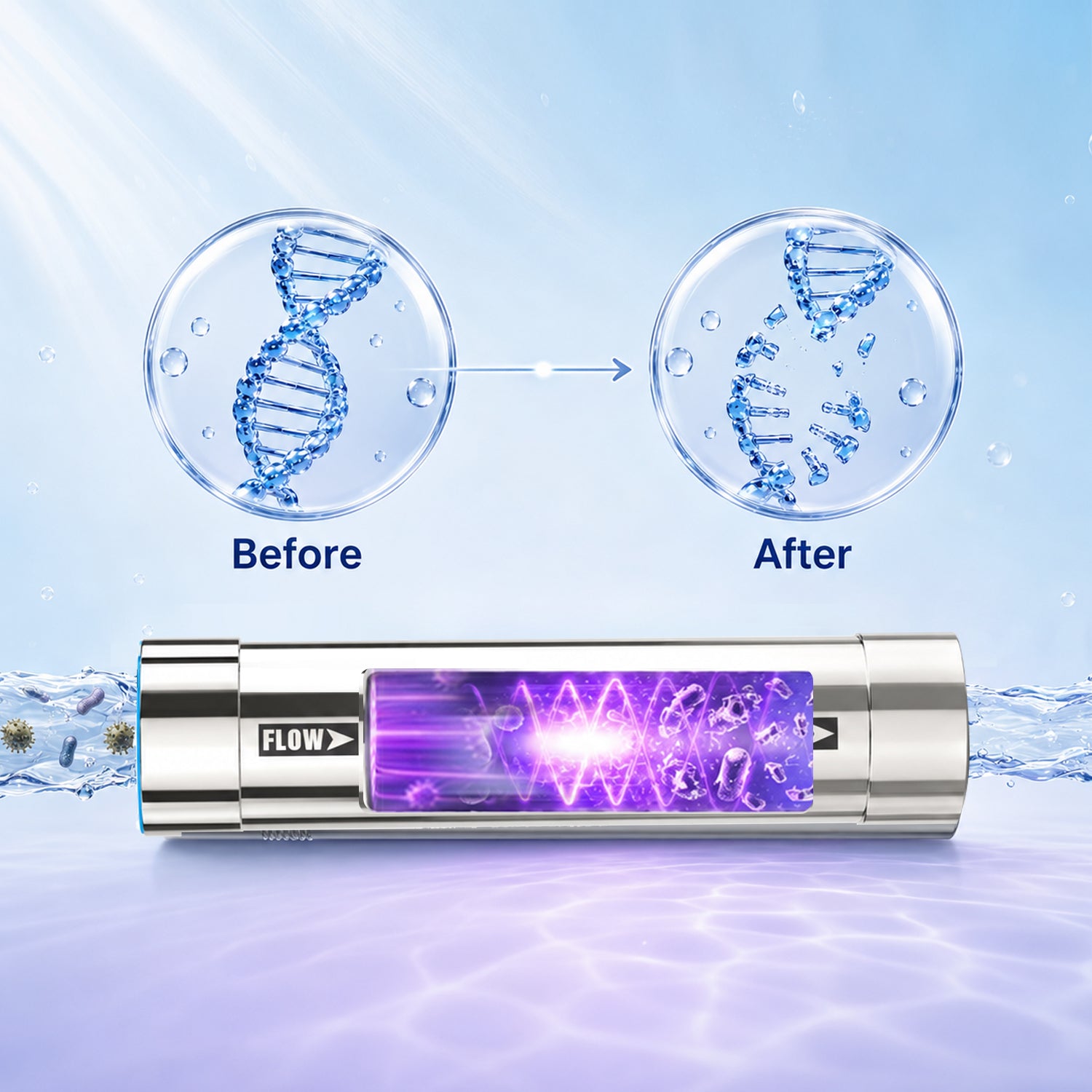

How UV treatment works

UV acts on susceptible microorganisms as water passes the treatment chamber

UV exposure can inactivate susceptible microorganisms, but delivered dose depends on flow, water clarity, UV transmittance, chamber condition, LED output, and maintenance.

For whole-house use, confirm measured peak flow and the required UV dose. The published GX-LED-12E flow rating is a planning reference, not a delivered-dose guarantee.

UV does not remove sediment, chlorine, hardness, scale, taste, odor, TDS, or dissolved chemicals. Use separate treatment when those are the goal.

Bacteria

E. coli, Legionella, Salmonella

UV can be used for bacterial inactivation, but susceptibility and required dose vary by organism and test conditions.

Protozoan parasites

Cryptosporidium and Giardia

Protozoa are a separate target group. Required dose and treatment performance must be evaluated for the organism and system conditions.

Viruses

Enteric viruses and adenoviruses

Some viruses require substantially higher UV doses than common bacterial targets. Evaluate virus performance separately for the system and conditions.

Spores & resistant targets

Bacillus spores and other higher-dose targets

Spores and other resistant targets can require higher UV doses. Treat target-specific validation as a separate requirement.

Check the home's source water and pretreatment

Use a current water test to identify the treatment target. Install GX-LED-12E at the point of entry after suitable pre-filtration, with the chamber accessible for routine checks and service.

Size for whole-house peak flow and required dose

GX-LED-12E is rated at 12 GPM / 45 LPM. Check measured household peak flow and the required UV dose. Delivered dose depends on flow, UV transmittance, water clarity, LED output, chamber condition, and maintenance.

Use this scope guide to compare treatment targets and installation conditions. Organism examples are educational; a specific reduction claim requires matching test evidence.

Jump to official UV reference data ↓

Official reference — not a product rating

EPA 254 nm UV dose reference

EPA's UV Disinfection Guidance Manual lists the following regulatory reference doses for public-water UV validation. They illustrate why results for one microorganism cannot stand in for another. These values are not GX-LED-12E performance ratings and should not be transferred directly to a UVC LED system.

Target group	1-log dose	4-log dose
Cryptosporidium	2.5 mJ/cm²	22 mJ/cm²
Giardia	2.1 mJ/cm²	22 mJ/cm²
Virus	58 mJ/cm²	186 mJ/cm²

Within the cited EPA framework, 1-log corresponds to 90% inactivation credit and 4-log to 99.99%. This reference table is separate from any GX-LED-12E product result. See the full guidance for scope, validation requirements, interpolation limits, and operating conditions.

Open EPA UV Disinfection Guidance Manual See CDC home water treatment guidance

GX-LED-12E FAQ

Know the Fit. Then Bring It Home.

1What affects GX-LED-12E UV performance?

Use the purifier within its rated flow and water-quality limits. Performance depends on flow, water clarity, installation, and maintenance.

2Why choose GX-LED-12E?

It provides compact, flow-activated whole-house UVC LED treatment at a 12 GPM rated flow with 16W total power. It is intended for homeowners who need a microbiological treatment stage after suitable pre-filtration.

3What does the built-in flow sensor do?

It detects water movement and activates the UVC LEDs automatically during flow. The LEDs turn off when water demand stops, so operating hours accumulate during treatment rather than continuously.

4What does 5,000 hours of LED runtime mean?

It is the rated accumulated LED operating time, not a fixed calendar-life promise. Actual service life depends on household water use, inlet-water quality, flow, power conditions, and the installation environment.

5Do I still need pre-filtration?

Often, yes. UV works best with clear water. Sediment, rust, turbidity, iron, and hardness can interfere with UV exposure, so use suitable pretreatment when the water does not meet the manual’s requirements.

6What plumbing connection does GX-LED-12E use?

The reactor has G1 female ports. Confirm the correct 1-inch male NPT, PT, G, or R adapter for the actual plumbing standard before ordering and installation.

7What does GX-LED-12E not remove?

It does not remove sediment, chlorine, hardness, scale, TDS, taste, odor, or dissolved chemicals. It is a UVC LED disinfection stage—not a sediment filter, carbon filter, softener, descaler, or reverse-osmosis system.

8Where should GX-LED-12E be installed?

Install it at the point of entry after suitable pre-filtration. Confirm peak flow, pipe and adapter compatibility, water clarity, pressure, power access, bypass layout, and enough clearance for installation and service.

Need help checking your setup?

Use the Product Finder to review water source, peak flow, pretreatment, pipe standard, and installation conditions.

Product Finder
