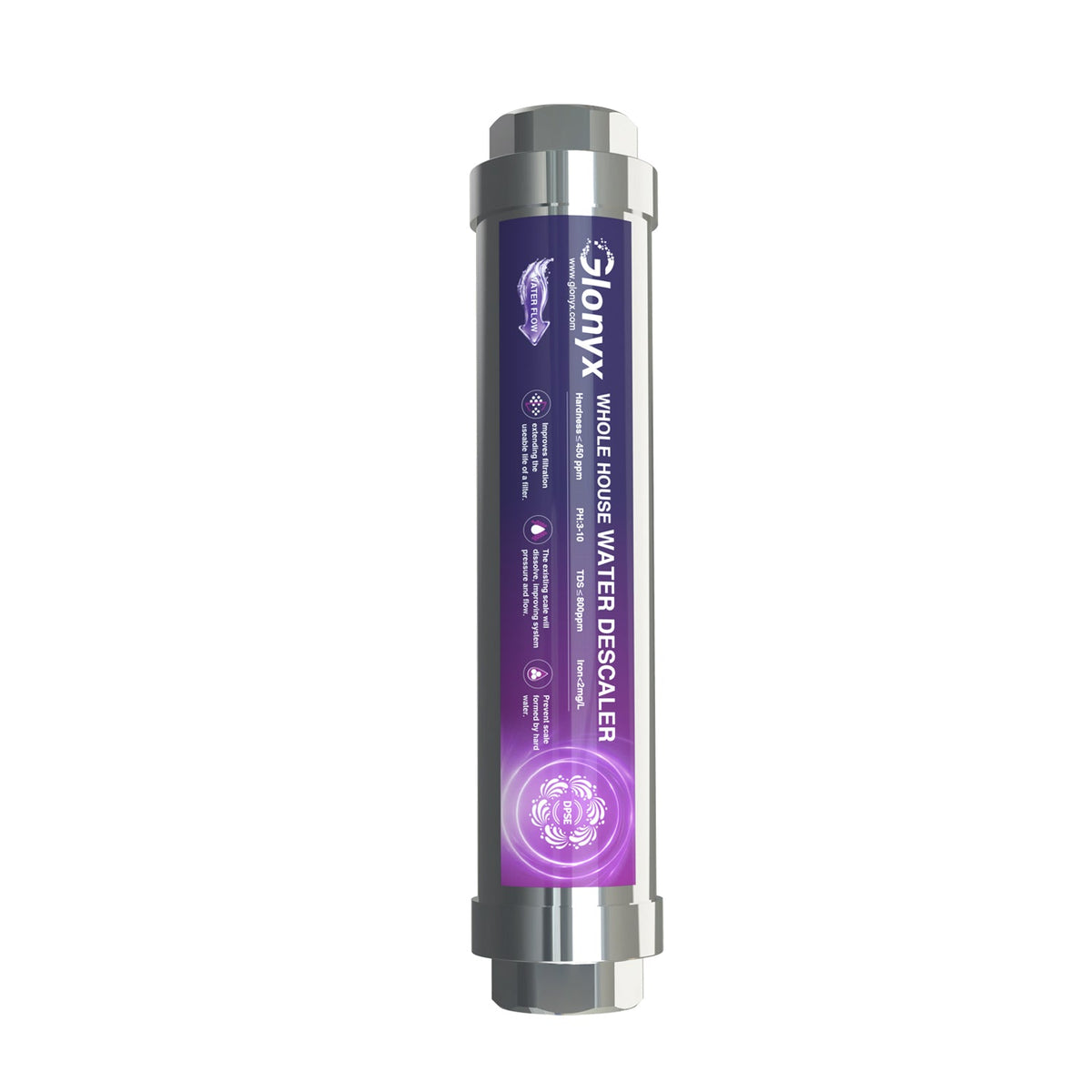

Glonyx Salt-Free Physical Water Descaler
Model Number: GX-WD-001
Help protect water heaters, showerheads, faucets, pipes, and water-using appliances from stubborn mineral scale—without hauling salt bags or adding a drain.
One compact system. Whole house. GX-WD-001 installs on the main line and helps reduce mineral scale adhesion with no electricity, regeneration, or chemical dosing. It keeps calcium and magnesium in the water, so it is scale control—not a water softener.
SALT-FREE WHOLE-HOME SCALE CONTROL
3-Year Warranty
One-time purchase
GX-WD-001 Whole-Home Scale Control
$200.00
- Recommended flow: 13.2 GPM
- Maximum listed flow: 17.6 GPM
No Salt
No Electricity
No Chemical Dosing
Scale Control Without Salt Refills.
GX-WD-001
Scale Control

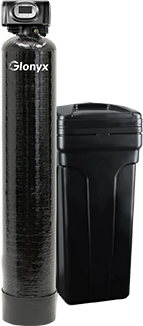

GX-WS
Water Softener
GX-WP-V20T
Filtration
Protect the expensive stuff
Helps reduce mineral scale buildup on plumbing, fixtures, heaters, and appliances.
One install. Whole-home coverage.
Scale control begins at the main line before water reaches household fixtures.
Keep the minerals. Fight the scale.
Hardness and TDS readings do not decrease because minerals remain in the water.
Protect Your Home Without the Salt Bags.
Protect the Places Scale Hits First
- Helps reduce mineral scale adhesion on plumbing and water-contact surfaces.
- Supports water heaters, showerheads, faucets, fixtures, and appliances.
- Starts scale control at the main line.

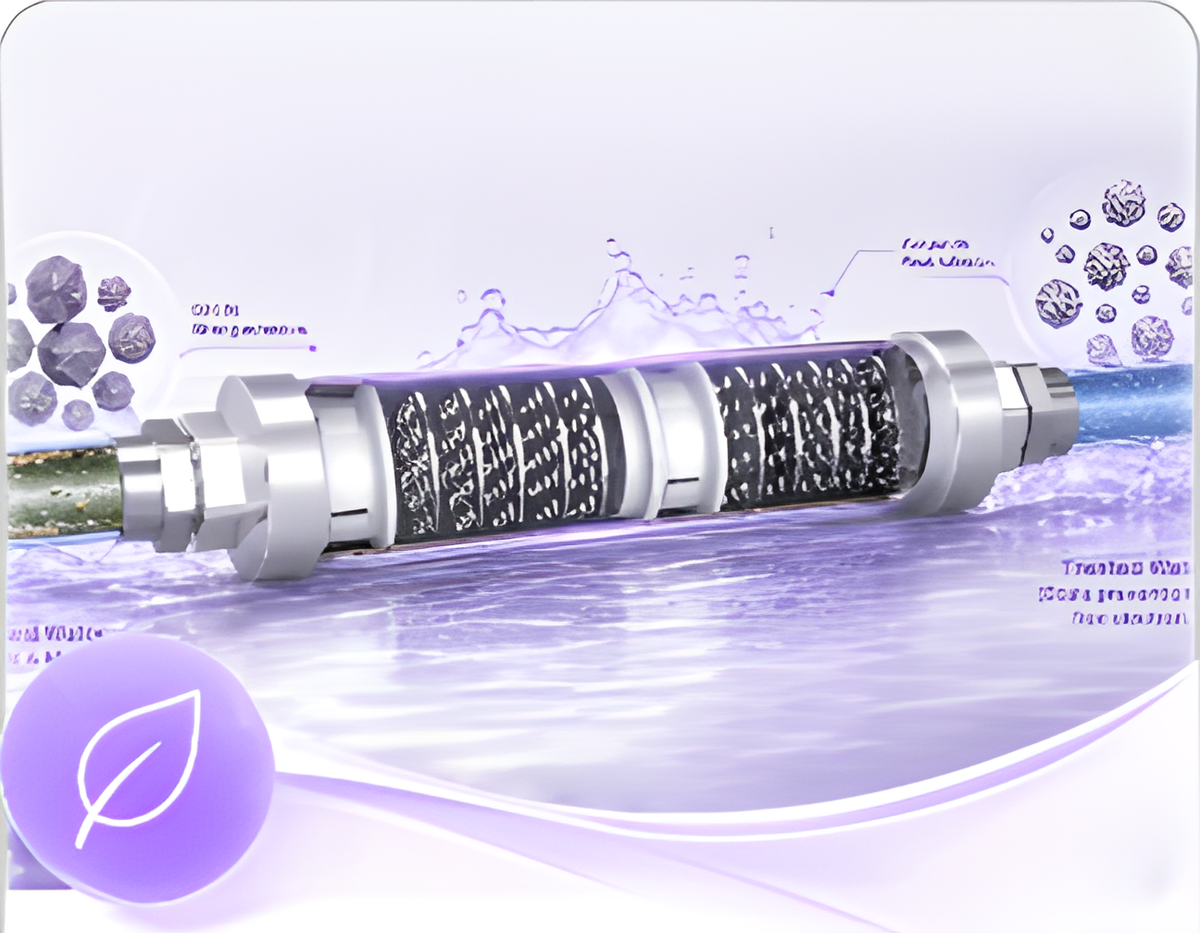

No Salt. No Power. No Hassle.
- No salt bags to carry, refill, store, or reorder.
- No electricity, regeneration cycle, or chemical dosing routine.
- No regeneration drain line is required.

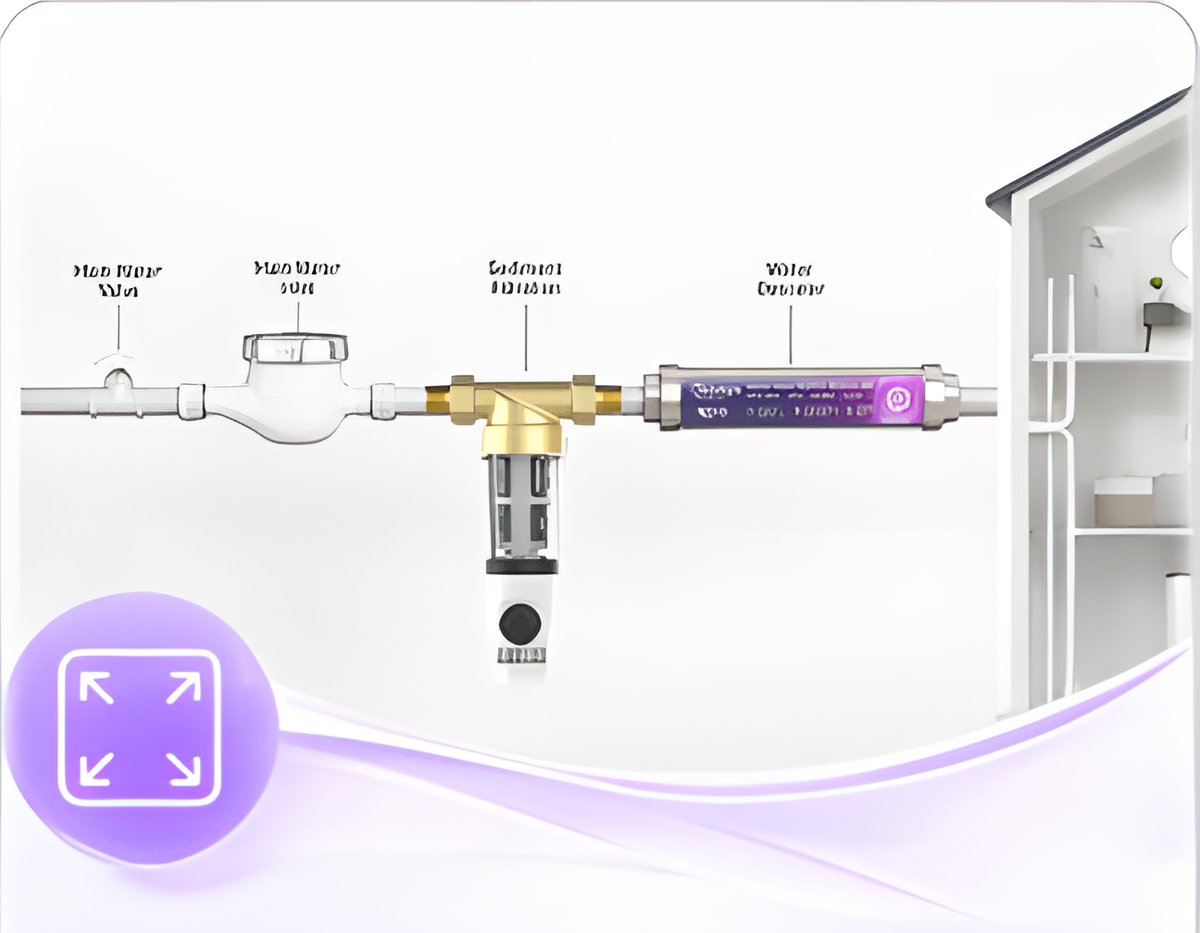

One Compact System. Whole House.
- Compact body for point-of-entry installation.
- DN20 / DN25 nominal diameter.
- G3/4 inch / G1 inch connection options.
Keep the Minerals. Fight the Scale.
- Calcium and magnesium remain in the water.
- Designed to manage scale adhesion, not reduce hardness.
- Hardness and TDS readings are not expected to decrease.

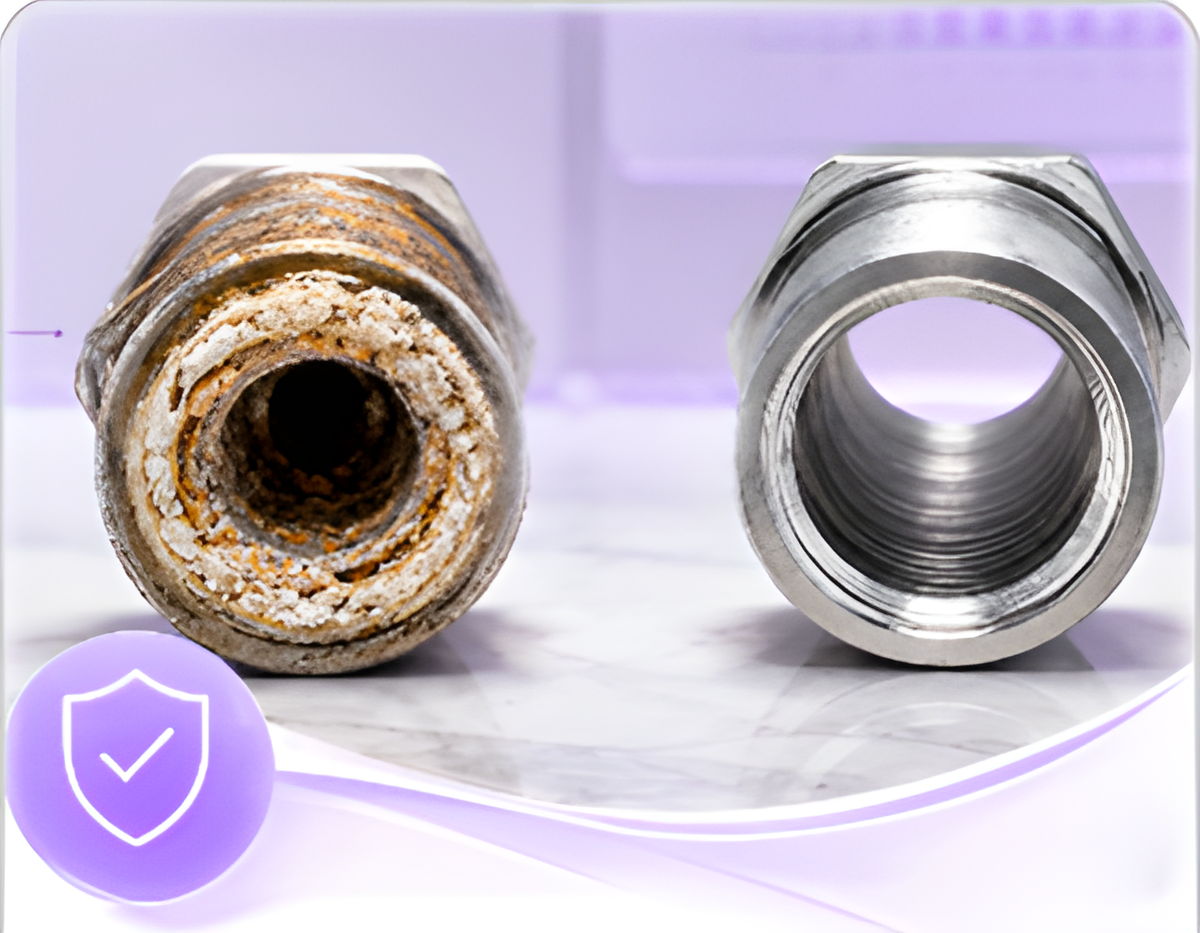

Scale Control with a Clear Job
- Designed to help reduce mineral scale attachment.
- Not a sediment filter, carbon filter, UV purifier, RO system, or softener.
- Choose it specifically for scale control.

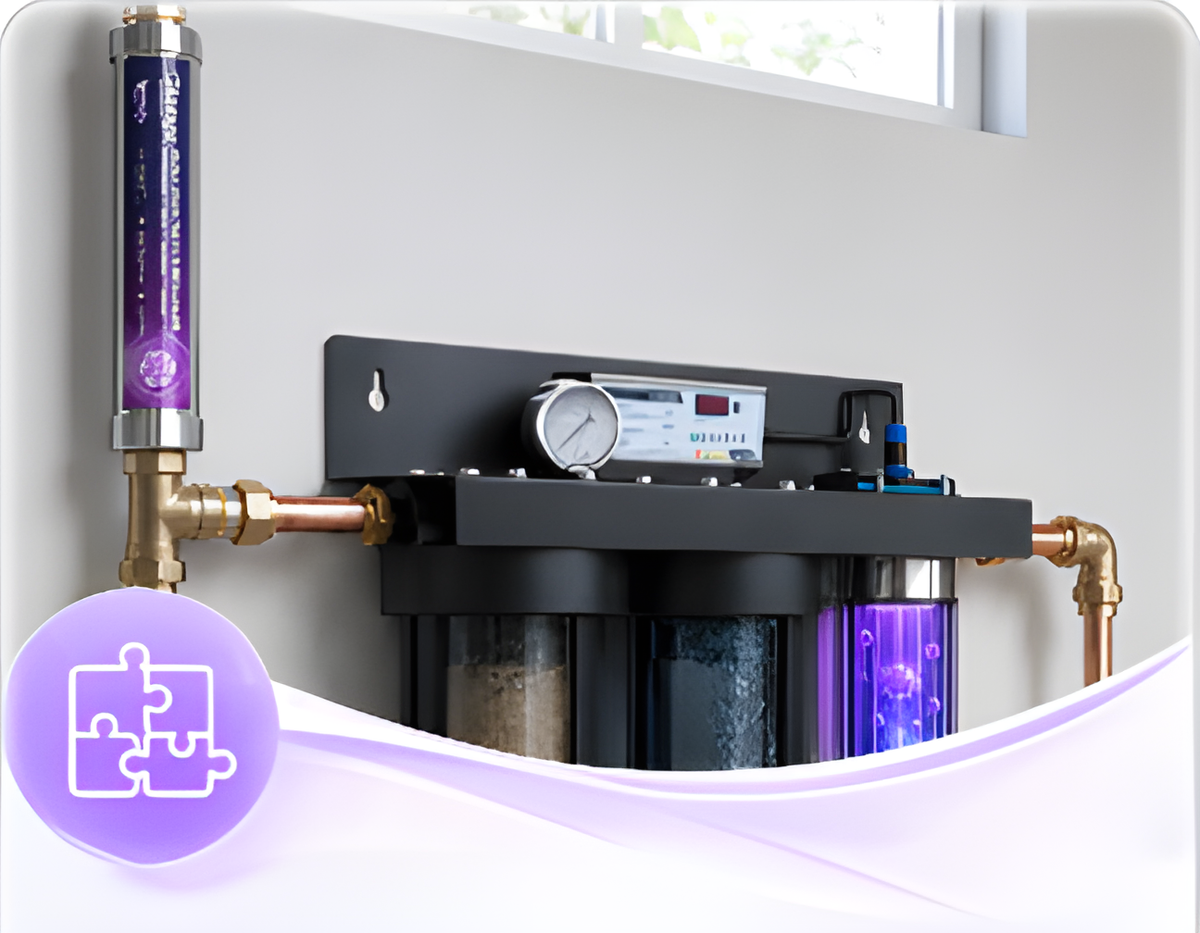

Fits Into a Complete Water Setup
- Use sediment filtration for particles, rust, sand, or debris.
- Use carbon, UV, RO, or a softener for their separate goals.
- Size each stage to water-test results, flow, and pipe size.
GX-WD-001
Whole-house scale inhibitor
Primary function
Scale inhibition
Helps reduce the tendency of mineral scale to form stubborn, adhesive deposits.
Connection
DN20 / DN25
G 3/4 in / G1 in connection options. Confirm local pipe-thread and adapter compatibility before installation.
Whole-house flow
0.6–4.0 m³/h / 2.6–17.6 GPM
Recommended listed flow:
3.0 m³/h / 13.2 GPM.
Dimensions and weightØ54 × 255 mm /
Ø54 × 255 mm /
Ø2.13 × 10.04 in
Listed product weight:
0.95 kg / 2.09 lb.
Outer housing
304 stainless steel
Durable metal housing for in-line residential installation.
Water quality requirements
Confirm source-water conditions
Hardness ≤450 mg/L as CaCO₃ (about 26.3 gpg); pH 3–10;
TDS ≤800 ppm; iron ≤2 mg/L (about 2 ppm).
Maximum listed pressure
<1.0 MPa / <145 psi
Confirm actual site pressure, pressure surges, and local plumbing requirements before installation.
Dishwasher
Dishwasher
Water Heater
Kitchen Faucet
Dishwasher
Bathroom Shower
Laundry Protection

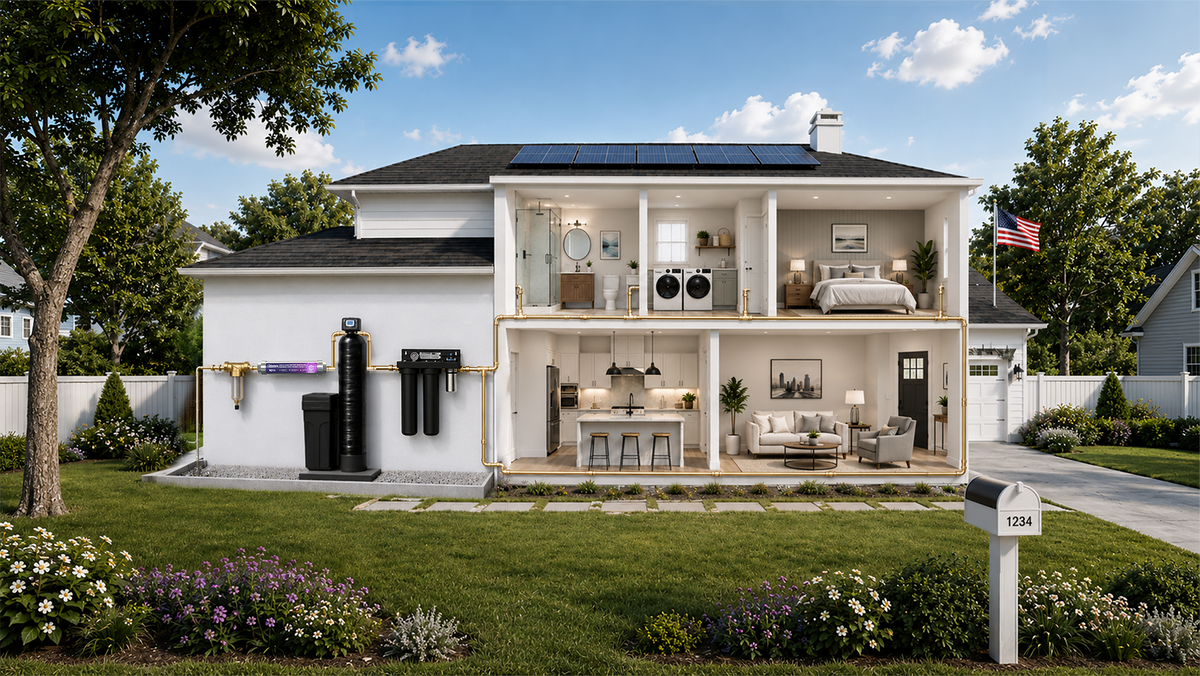

Plan the GX-WD-001 Installation
Point of Entry
Install at the residential point of entry where whole-home flow can pass through the unit.
Pre-filtration
Use suitable pre-filtration first when sediment, rust, sand, or visible particles are present.
Connection Compatibility
Confirm DN20 / DN25 connection compatibility and G 3/4 in / G1 in fittings before installation.
Flow Range
Use within the listed 0.6–4.0 m³/h / 2.6–17.6 GPM flow range; 3.0 m³/h / 13.2 GPM is the listed recommendation.
System Check
Confirm pressure, water quality, orientation, and service clearance with a qualified installer and the product manual.
Installation Manual
Model-specific installation instructions.
Request Installation InstructionsInstallation Video
Get help with model-specific installation steps.
Get Installation SupportScale control
GX-WD-001
- Helps reduce mineral scale adhesion on plumbing and water-contact surfaces.
- Keeps calcium and magnesium in the water.
- No salt, electricity, regeneration cycle, or drain line for normal operation.
Hardness reduction
GX-WS Series
- Uses ion exchange to reduce calcium and magnesium hardness minerals.
- Designed for homeowners who want to lower measured water hardness.
- Requires salt, regeneration, a drain connection, and routine maintenance.
Choose the result you want
GX-WD-001 is designed for scale control while keeping naturally occurring minerals in the water.
If your goal also includes lowering measured water hardness, add a GX-WS Series water softener to the treatment plan.
GX-WD-001 FAQ
Frequently Asked Questions
1What problem is WD001 designed to address?
WD001 is designed for mineral scale adhesion. It helps reduce scale buildup on pipes, water heaters, showerheads, fixtures, and water-using appliances.
2Is WD001 a water softener?
No. It does not remove calcium or magnesium and is not expected to lower measured hardness or TDS.
3Does installing WD001 mean I do not need a water softener?
Not necessarily. Choose WD001 for scale control and a water softener when the required result is reduced hardness.
4Does it need salt, electricity, or chemicals?
Normal operation does not require salt, electricity, regeneration, a drain line, or chemical dosing.
5What flow and connection should I confirm?
Confirm peak flow, DN20 / DN25 compatibility, and the required G3/4 inch or G1 inch connection.
6What does WD001 not do?
It does not filter sediment, remove chlorine or dissolved chemicals, disinfect water, produce RO water, or soften water.
—
★★★★★
