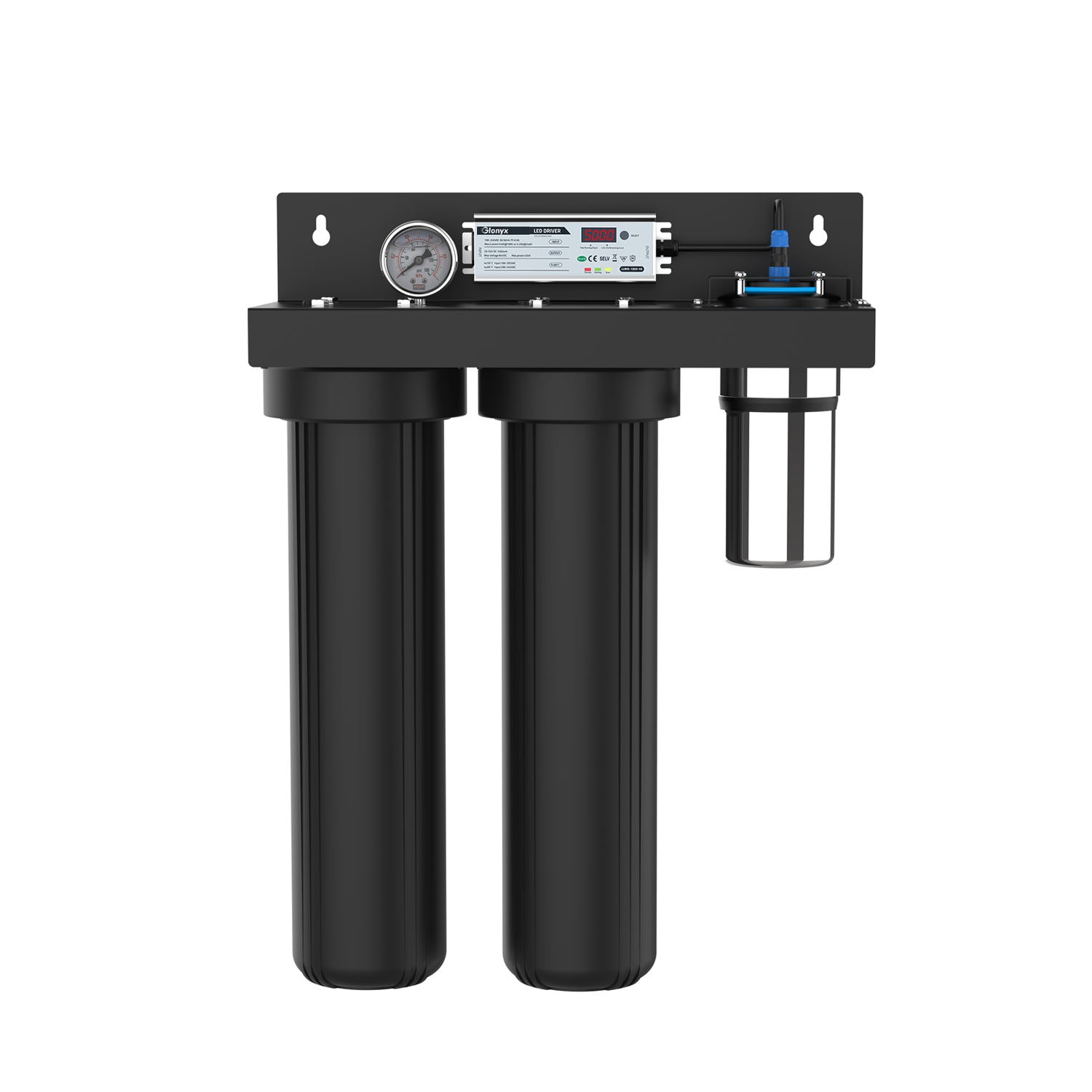

GX-WP-V20T standard system
No reviews yet

Glonyx Whole-House Filtration System with UVC LED

Model Number: GX-WP-V20T

One system. Three water jobs — catch sediment, help cut chlorine taste and odor, then add UVC LED treatment before water reaches the rest of the home.

20-inch whole-house UVC LED system

  • Protection starts with the tap — the built-in flow sensor runs the UVC LED stage while your family is using water—not all day.
  • Built for busy family mornings — 12 GPM / 45 LPM rated flow keeps up with everyday whole-home demand at the stated reference condition.
  • Replace Routine Service Parts as Needed. — The sediment and carbon cartridges can be replaced separately. Check your system label before ordering a UVC LED service module.
Choose your purchase option

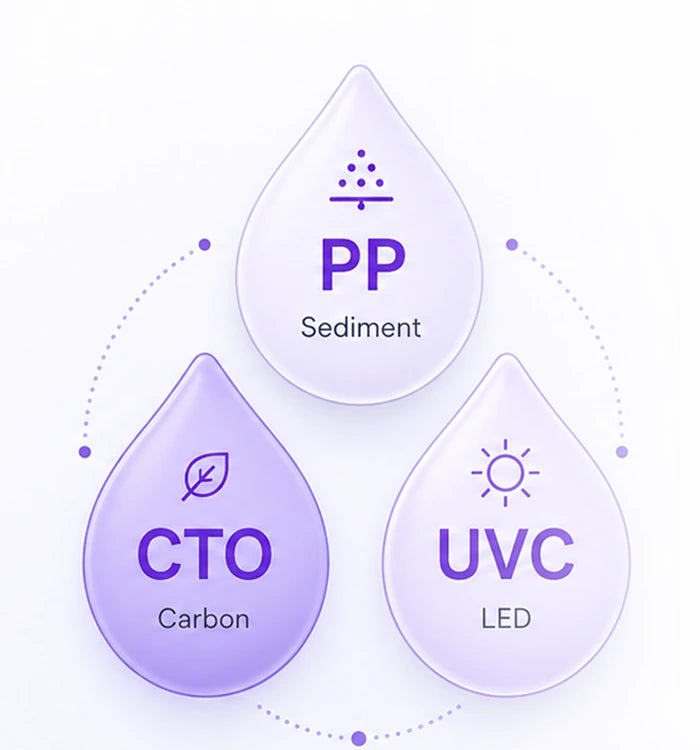

PP + Carbon
Block Filtration
Flow-Activated
UVC LED
5,000-Hour
Module Life

One Compact System
Three Treatment Stages

Slide to see the filtration and UVC LED system working behind the finished cover.

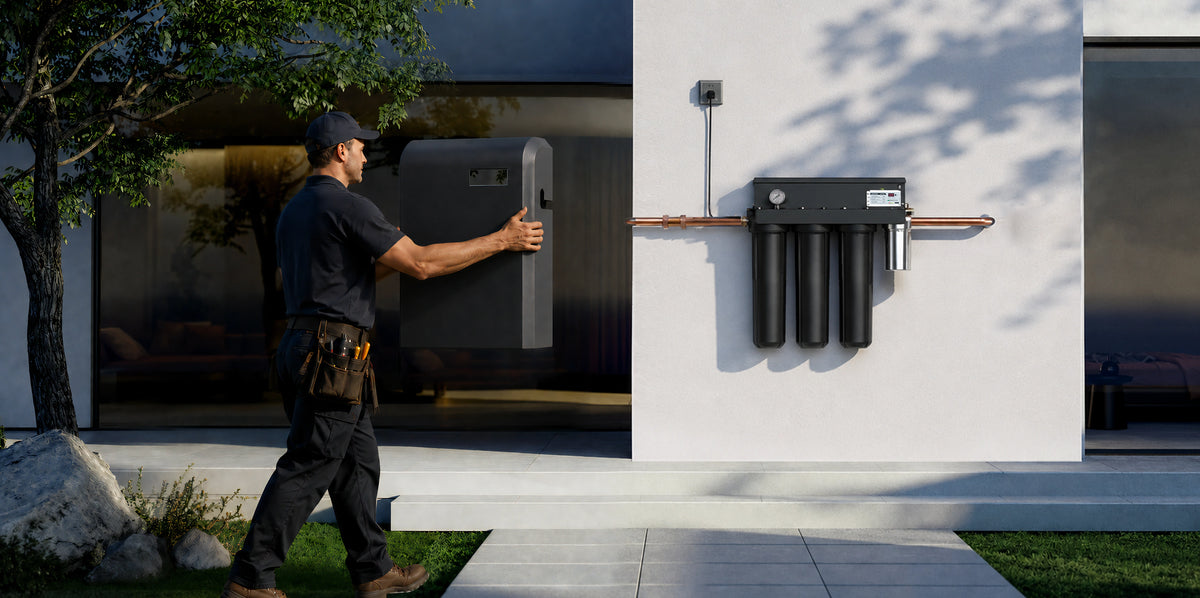

Glonyx installation with the cover removed, from the supplied V20T PSD

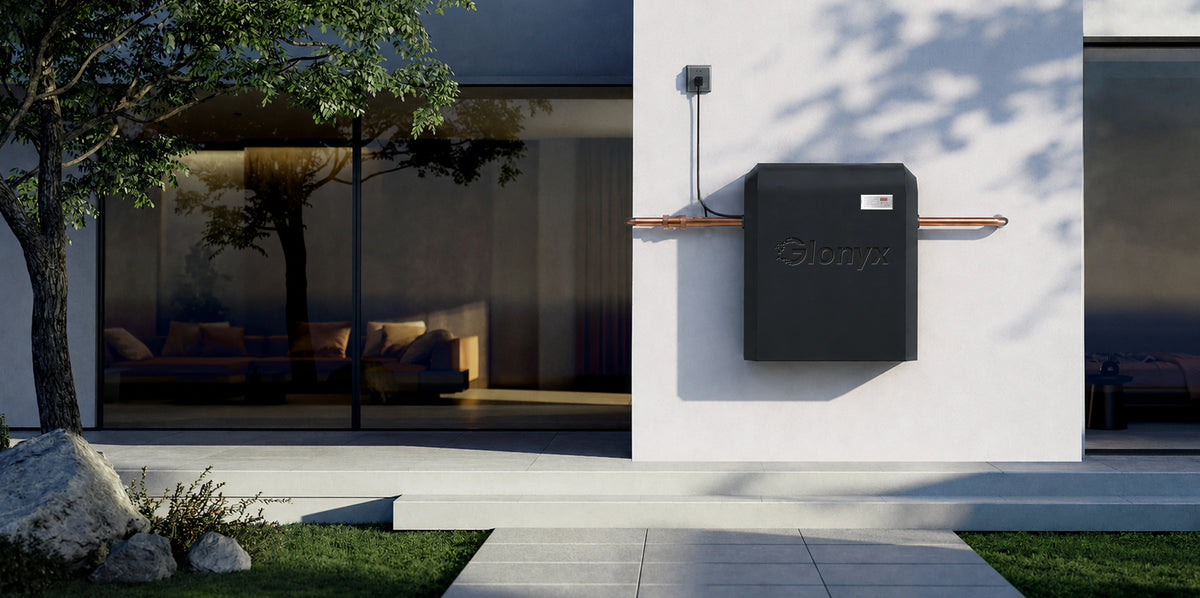

Glonyx installation with the protective cover fitted, from the supplied V20T PSD

What Better Water Looks Like
Around the House

Washing grapes at the kitchen tap; original V20T artwork

Cleaner Water Starts
at the Main Line

  • Point-of-entry treatment supports water throughout the home.
  • A 5 μm PP stage targets visible sediment, rust, and dirt.
  • The carbon block supports chlorine taste and odor reduction.
  • Rated for 12 GPM / 45 LPM under stated conditions.

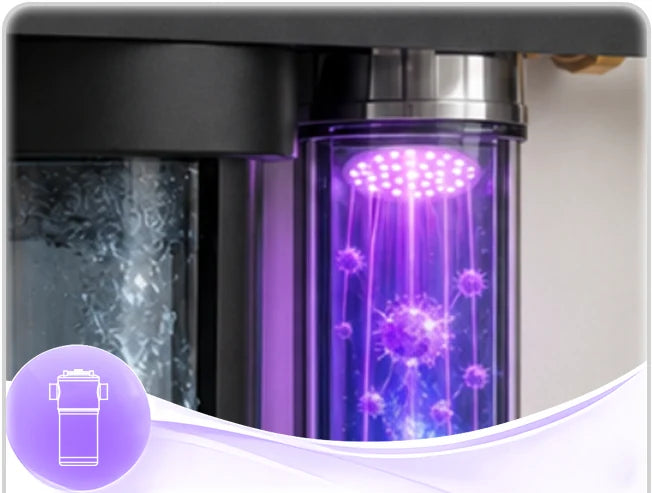

V20T UVC LED chamber and module; original artwork

Protection That Runs
Automatically

  • The built-in flow sensor activates the UVC LED only when water moves.
  • Demand-based operation helps avoid unnecessary energy use between cycles.
  • The replaceable 50W module has a 5,000-hour rated life.
  • UVC LED treatment adds no salt or treatment chemicals.

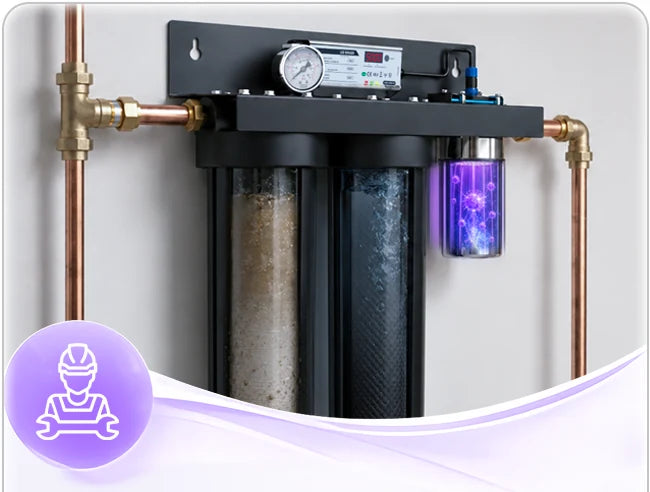

Installed V20T two-filter system; original artwork

Maintenance Without
the Headache

  • Uses standard 20 × 4.5-inch sediment and carbon cartridges.
  • A 1-inch stainless-steel 304 connection supports whole-house plumbing.
  • The modular UVC LED stage is planned for replacement service.
  • Choose the standard system or the version with a finished cover.

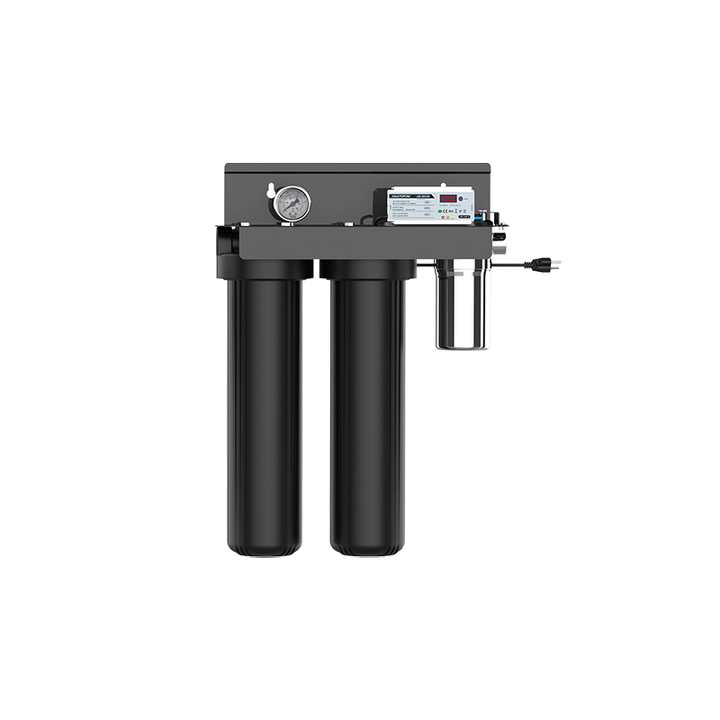

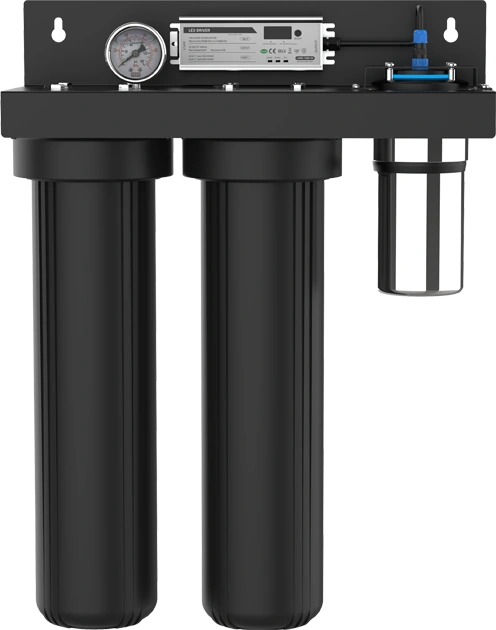

GX-WP-V20T with two filter housings and UVC LED chamber
Model

GX-WP-V20T

Whole-house filtration and UVC LED treatment system.

Rated flow

45 LPM / 12 GPM

Residential whole-house reference flow.

Connection

1-inch connection

Stainless-steel 304 inlet and outlet connection.

Filtration stages

PP + Carbon + UVC LED

Two 20" × 4.5" filters: 5 μm PP sediment and carbon block cartridges.

UVC LED module

50W

Replaceable, flow-activated UVC LED module.

Pressure

10–100 psi

Confirm actual site pressure before installation.

UVC LED module life

5,000 hours

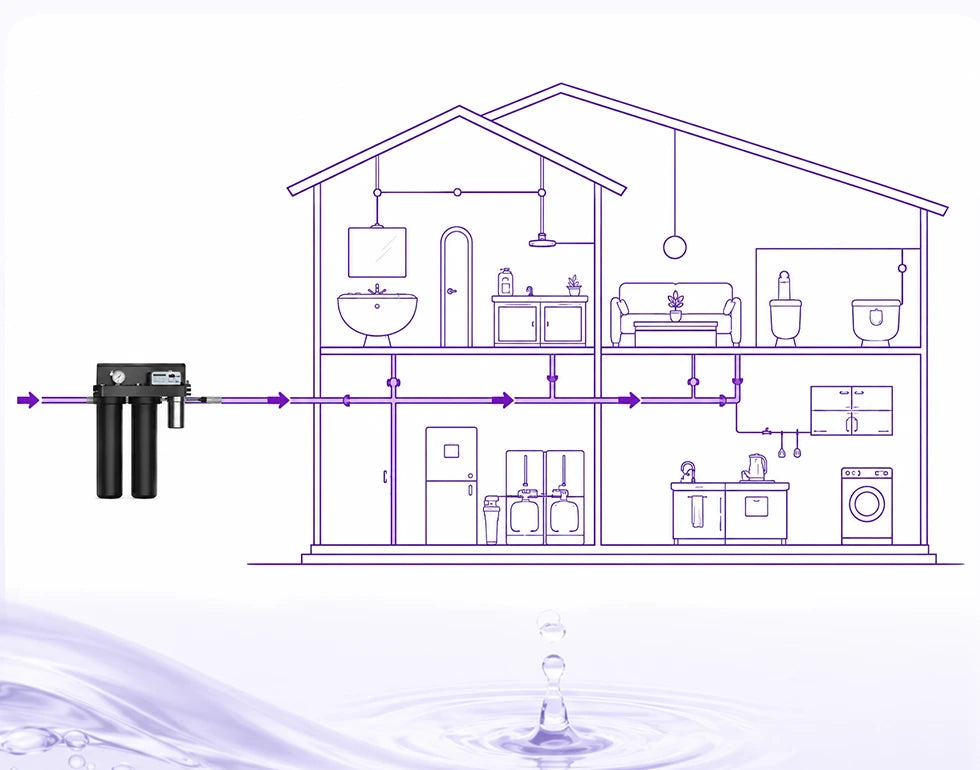

Point-of-entry installation before water branches to household fixtures.

GX-WP-V20T FAQ

Frequently Asked Questions

1What changes after V20T is installed?

It combines 5 μm sediment filtration, carbon block filtration, and a flow-activated 50W UVC LED stage in one whole-house system.

2Is it a water softener?

No. It does not remove dissolved hardness minerals.

3Does it reduce TDS?

No. Sediment, carbon, and UVC LED stages do not reduce total dissolved solids.

4Does the UVC LED run all day?

The built-in flow sensor activates the UVC LED stage while water is moving through the system.

5What filters does it use?

It uses a 20 × 4.5-inch PP sediment filter and a 20 × 4.5-inch carbon block filter.

6What is the rated flow?

The rated residential whole-house reference is 12 GPM / 45 LPM under suitable conditions.

7What pressure range does it support?

The current page reference is 10–100 psi. Confirm actual site pressure before installation.

8Does the UVC LED module need replacement?

Yes. The replaceable module has a 5,000-hour rated life and should be serviced according to use and condition.

9Where should it be installed?

Install it on the point-of-entry water line before household branches, with dry power access and service clearance.

10What should I check before I buy?

Confirm water source, peak flow, pipe size, pressure, space, power access, water clarity, and any separate treatment needs.

Not Sure V20T Fits
Your Home?

Send your pipe size, peak flow, water source, pressure range, and installation photos. We can help determine whether GX-WP-V20T fits your home.

Ask Setup SupportRecommended if you are unsure about flow, pressure, or equipment match.
