AE Series UV Ballast
GX-UV-AE Series
100–240 VAC
33–87 W lamps
G10Q
Touchscreen Replacement UV Ballast

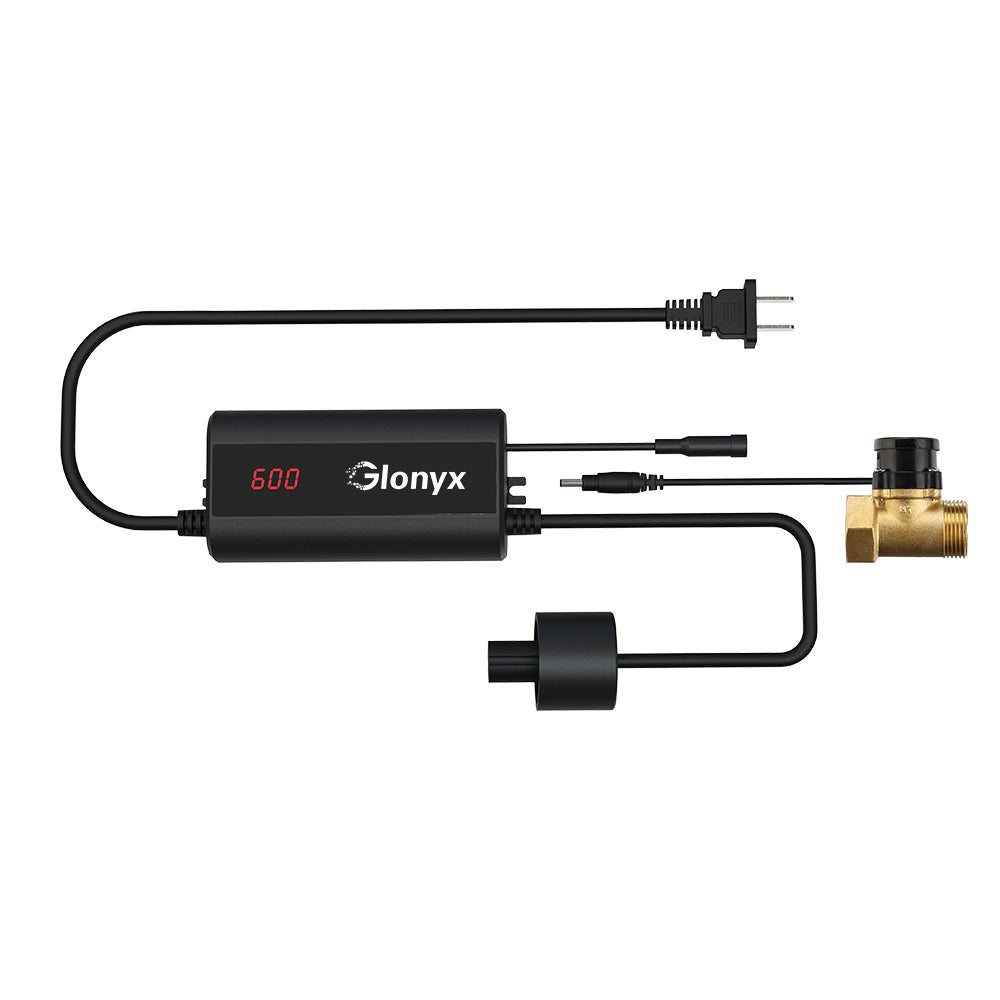

Selected part: GX-UV-AE Series UV controller
Compatible Glonyx systems
Match your GX-UV-AE system model, controller connections, and lamp rating before ordering.
Product details
Specifications, Fit & What's Included
Key dimensions, system fit, and box contents at a glance—so you can choose the replacement part that matches your Glonyx setup.
Key Specifications
| Controller type | GX-UV-AE Series UV controller |
|---|---|
| Fits Glonyx systems | GX-UV-AE8, GX-UV-AE12, GX-UV-AE22 |
| Input | 100–240 VAC, 50/60 Hz |
| Rated power | 87 W |
| Lamp output | 800 mA |
| Lamp connection | G10Q |
| Lamp range | 33–87 W |
| Controller size | Approx. 5.71 × 3.54 × 2.17 in |
| Display | LCD lamp-life and operating-status display |
| Operation | Constant-on UV lamp control |
Made to Fit
Made for GX-UV-AE8, GX-UV-AE12, and GX-UV-AE22 systems with a matching constant-on UV controller and lamp configuration.
Quick Fit Check
Confirm your complete GX-UV-AE system model, original controller label, lamp wattage, and connection before ordering.
What's Included
1 replacement AE Series UV ballast/controller.
LCD lamp-life display with operating-status alerts.
100–240 VAC, 50/60 Hz input.
Supports matched 33–87 W G10Q UV lamps.
Need a second look? Send us a photo of your current controller label.
Compatibility & service
Match the original part before checkout
Replacement parts can look similar while using different electrical ratings, dimensions, connectors, threads, seals, or operating modes.
Constant-on AE Series UV control
The GX-UV-AE Series controller powers the matched lamp continuously and provides LCD lamp-life and status monitoring.
What to match
- Confirm the complete GX-UV-AE system model and original controller label.
- Match GX-UV-AE8, GX-UV-AE12, or GX-UV-AE22, plus lamp wattage, G10Q connector, cable, and plug.
- Use the matched constant-on controller; a GX-WP-E20T flow-control ballast is not a substitute.
Before replacement
- Disconnect electrical power and isolate the water supply.
- Depressurize and drain the relevant housing or chamber.
- Restore service slowly and verify normal operation and leak-free sealing.
Not certain this is the correct part?
Send the system label, current part label, dimensions, and one installation photo before ordering.
Find your complete Glonyx system
For GX-UV-AE8, GX-UV-AE12, and GX-UV-AE22. Match the original constant-on controller label, lamp, and connector.
—
★★★★★
out of 5
5
0
4
0
3
0
2
0
1
0
Log In to Review
Sign in to your Glonyx account before writing a review.
Be the First to Share Your Experience
Have this GLONYX replacement part? Tell us about the fit and your replacement experience.
Touchscreen Replacement UV Ballast
No reviews yet.
Product support
Frequently asked questions
1Which Glonyx systems are confirmed for this ballast?
This UV controller is confirmed for GX-UV-AE8, GX-UV-AE12, and GX-UV-AE22 systems when the original controller label and lamp configuration match.
2Does this controller use a water flow switch?
No. The GX-UV-AE Series replacement is a constant-on UV lamp controller and does not use an external water flow switch.
3What does the LCD monitor?
The TFT LCD supports lamp-life monitoring and visual and audible lamp-status alerts.
4What warranty applies to replacement parts?
Separately sold Glonyx replacement parts and accessories carry a 1-year limited warranty against verified defects in materials or workmanship. Normal wear, consumable depletion, incorrect matching, and improper installation are not product defects.
5What should I match before ordering?
Confirm the complete GX-UV-AE system model, original controller label, lamp wattage, G10Q connection, 100–240 VAC input, cable, and plug.
