Replacement UV Quartz Sleeve
33 / 48 / 87 W
Clear quartz
Lamp protection
Matched sleeve refs
Replacement UV Quartz Sleeve

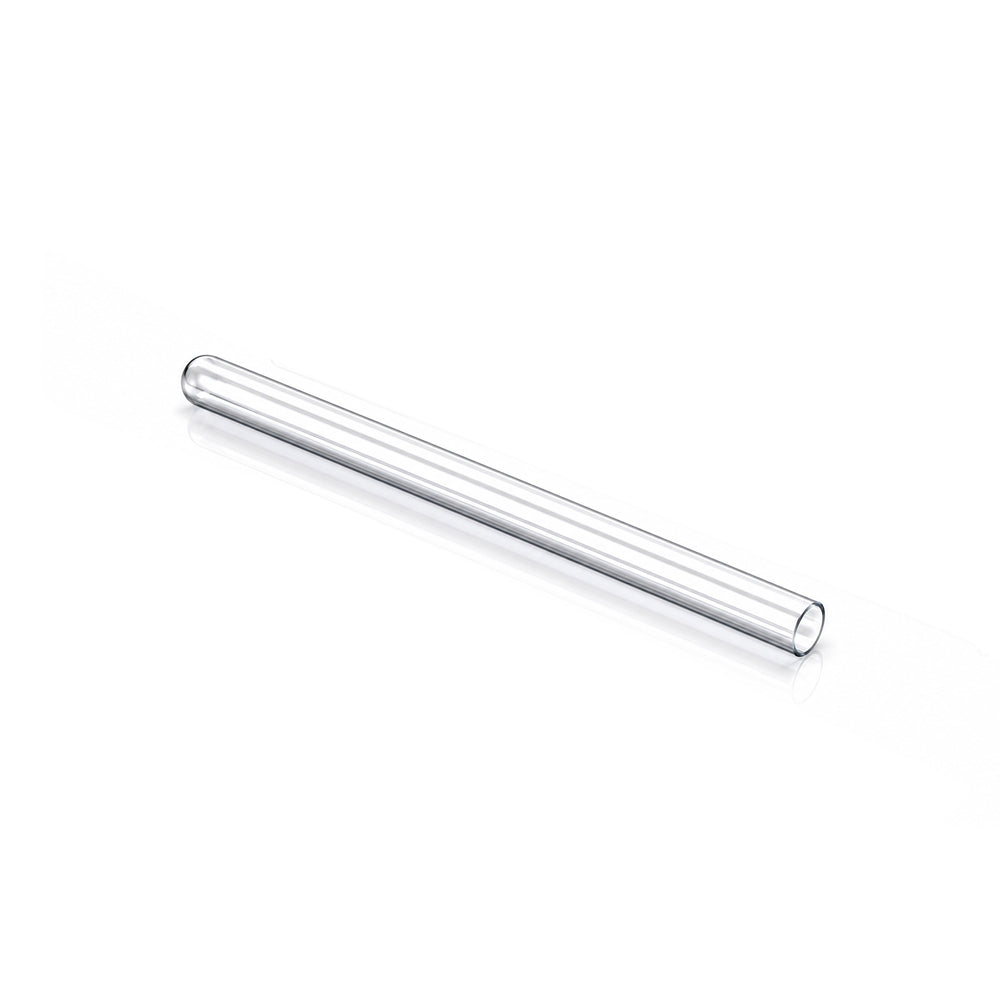

Selected part: Glonyx quartz sleeve · 48W
Compatible Glonyx systems
Match the original sleeve length, diameter, seal, and reactor. Wattage alone does not confirm fit.
Product details
Specifications, Fit & What's Included
Key dimensions, system fit, and box contents at a glance—so you can choose the replacement part that matches your Glonyx setup.
Key Specifications
| Available options | 33 W, 48 W, 87 W platforms |
|---|---|
| Material | Clear quartz |
| 33 W sleeve | GX-UV-AE8 |
| 48 W sleeve | GX-UV-AE12 |
| 87 W sleeve | GX-UV-AE22 |
| Retail package | 1 quartz sleeve in the selected option |
Made to Fit
Made for compatible Glonyx UV reactors using the matching quartz-sleeve reference for the installed lamp and chamber.
Quick Fit Check
Match the sleeve reference and overall length to the sleeve you are replacing. For 87 W systems, the reactor label helps identify the right sleeve.
What's Included
1 replacement quartz sleeve in the selected wattage option.
Protects the UV lamp from direct water contact.
Clear quartz supports UV transmission into the water.
Options are available for 33 W, 48 W, and 87 W platforms.
Need help matching it? Send us a photo of the reactor label and current sleeve.
Compatibility & service
Match the original part before checkout
Replacement parts can look similar while using different electrical ratings, dimensions, connectors, threads, seals, or operating modes.
Water-isolation sleeve for the UV lamp
The quartz sleeve isolates the lamp from water while transmitting ultraviolet energy into the reactor.
What to match
- Match the exact sleeve reference, not wattage alone.
- Confirm total length, diameter, open or closed end, seal position, and O-ring.
- Select the sleeve for GX-UV-AE22 only when the original sleeve dimensions, seal, and reactor match. Confirm the correct sleeve with support for other reactors.
Before replacement
- Disconnect electrical power and isolate the water supply.
- Handle quartz without side loading and inspect the O-ring and sealing surfaces during every service.
- Restore service slowly and verify normal operation and leak-free sealing.
Not certain this is the correct part?
Send the system label, current part label, dimensions, and one installation photo before ordering.
Find your complete Glonyx system
Match the original sleeve reference, length, diameter and seal. The 87W option can use different sleeve references; wattage alone does not confirm fit.
—
★★★★★
out of 5
5
0
4
0
3
0
2
0
1
0
Log In to Review
Sign in to your Glonyx account before writing a review.
Be the First to Share Your Experience
Have this GLONYX replacement part? Tell us about the fit and your replacement experience.
Replacement UV Quartz Sleeve
No reviews yet.
Product support
Frequently asked questions
1Which quartz sleeve is listed for GX-UV-AE22?
Choose the sleeve listed for the GX-UV-AE22 87 W platform. Match the original sleeve length, diameter, seal, and reactor before ordering; wattage alone does not confirm fit.
2What dimensions must be checked?
Confirm overall length, outside diameter, open or closed end configuration, seal location, O-ring size, and the original reactor model.
3Should the O-ring be replaced during service?
Inspect the O-ring and sealing surfaces every time the sleeve is removed. Replace damaged, flattened, hardened, or incompatible seals before repressurizing.
4What warranty applies to replacement parts?
Separately sold Glonyx replacement parts and accessories carry a 1-year limited warranty against verified defects in materials or workmanship. Normal wear, consumable depletion, incorrect matching, and improper installation are not product defects.
5How should the quartz sleeve be handled?
Quartz is fragile. Drain and depressurize the chamber, avoid side loading, keep the surface clean, and leak-test slowly after reassembly.
