GX-LED-12 UVC LED Module
GX-LED-12
270–280 nm
2,000 mW UVC
5,000 h LED life

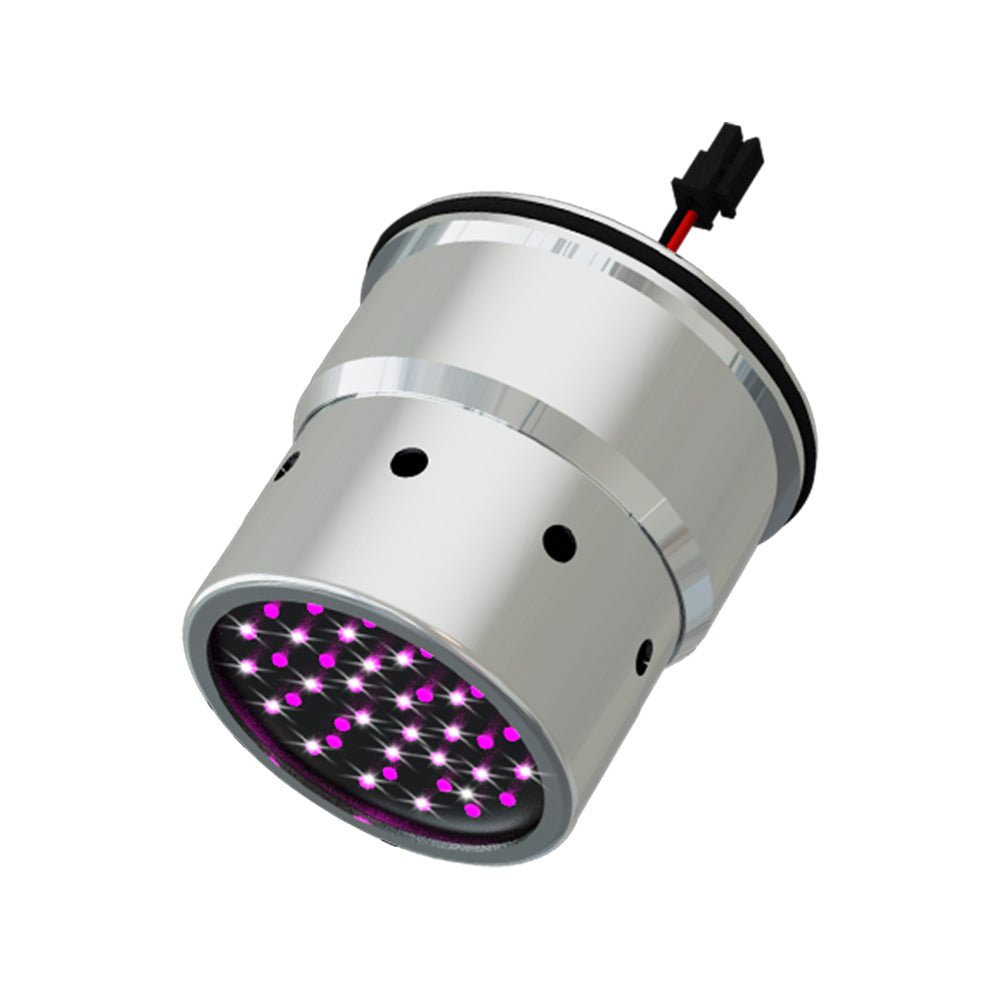

Replacement UVC LED Module
Selected part: GX-LED-12 UVC LED module
Compatible Glonyx systems
Match your GX-LED-12 module, power supply, and connector before ordering.
Product details
Specifications, Fit & What's Included
Key dimensions, system fit, and box contents at a glance—so you can choose the replacement part that matches your Glonyx setup.
Key Specifications
| Module type | GX-LED-12 replacement UVC LED module |
|---|---|
| Fits system | Serviceable GX-LED-12 platform |
| Module size | Approx. Ø2.58 × 2.74 in |
| Net weight | Approx. 0.79 lb |
| Installation | Internal screw-in module |
| Connector | 2.54 mm 4-pin |
| Rated power | 50 W |
| UVC optical power | 2,000 mW |
| UVC wavelength | 270–280 nm |
| Rated LED life | 5,000 operating hours |
Made to Fit

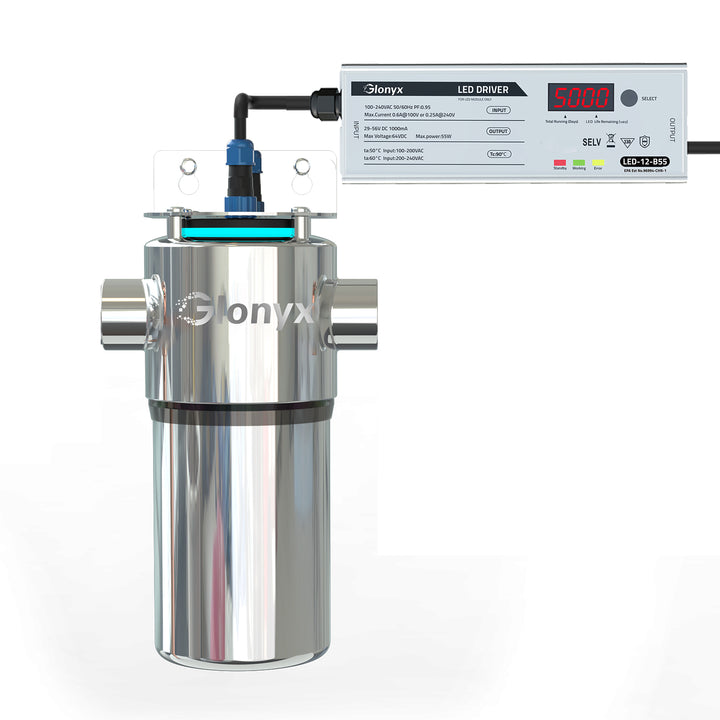

This replacement module fits the serviceable GX-LED-12, GX-WP-V20T, and GX-WP-V20TC platforms. Use the matching original LED power supply.
Quick Fit Check
Confirm the complete Glonyx system model, original module, and 2.54 mm 4-pin connector before ordering.
What's Included
1 replacement UVC LED module for the matching Glonyx system.
Replace the light-source module while keeping the original reactor and controller.
270–280 nm UVC wavelength with 2,000 mW optical output.
5,000-hour rated LED service life.
Need help matching it? Send us a photo of your GX-LED-12 label and current module.
Compatibility & service
Match the original part before checkout
Replacement parts can look similar while using different electrical ratings, dimensions, connectors, threads, seals, or operating modes.
Serviceable GX-LED-12 UVC module
The module restores the original UVC LED source in the matched serviceable GX-LED-12 system.
What to match
- Confirm the complete GX-LED-12 system and original module label.
- Match the 2.54 mm 4-pin connector, threaded interface, controller revision, and installation orientation.
- Match the original UVC LED module and power supply to the GX-LED-12, GX-WP-V20T, or GX-WP-V20TC service configuration.
Before replacement
- Disconnect electrical power and isolate the water supply.
- Depressurize and drain the relevant housing or chamber.
- Restore service slowly and verify normal operation and leak-free sealing.
Not certain this is the correct part?
Send the system label, current part label, dimensions, and one installation photo before ordering.
Find your complete Glonyx system
For the serviceable GX-LED-12 platform. Confirm the module reference and connector before ordering.
—
★★★★★
out of 5
5
0
4
0
3
0
2
0
1
0
Log In to Review
Sign in to your Glonyx account before writing a review.
Be the First to Share Your Experience
Have this GLONYX replacement part? Tell us about the fit and your replacement experience.
Replacement UVC LED Module
No reviews yet.
Product support
Frequently asked questions
1Is this the complete GX-LED-12 system?
No. This is the internal replacement UVC LED module for the matching Glonyx system. The power adapter is a separate matched part; the reactor, controller, and complete whole-house system are not included.
2What module data is confirmed?
The replacement UVC LED module has Ø65.5 × 69.6 mm dimensions, 360 g weight, threaded installation, a 2.54 mm 4-pin connector, 50 W rated power, 2,000 mW UVC output, 270–280 nm wavelength, and 5,000 operating hours. Use the matching original LED power adapter.
3What must match before ordering?
Confirm the GX-LED-12, GX-WP-V20T, or GX-WP-V20TC system label, controller revision, original UVC LED module and power adapter, 2.54 mm 4-pin connector, threaded interface, and installation orientation.
4What warranty applies to replacement parts?
Separately sold Glonyx replacement parts and accessories carry a 1-year limited warranty against verified defects in materials or workmanship. Normal wear, consumable depletion, incorrect matching, and improper installation are not product defects.
5Does this listing include the complete GX-LED-12 system?
No. It is a replacement UVC LED module only unless the product page expressly states otherwise; the matching power adapter is a separate service part.
